Datasheet
Machine details
Technical details
- turning diameter over bed560 mm
- turning diameter over slide rest355 mm
- turning length1500 mm
- spindle bore80 mm
- spindle turning speed range25 - 1600 U/min
- turning dia. in gap785 mm
- metric threading0,2 - 14 mm
- thread - inch 2 - 112 inch.
- thread - module34 / 0,1 - 7 mm
- Whitworth-thread60 / 2 - 112 TPI
- adjustment of the upper slide140 mm

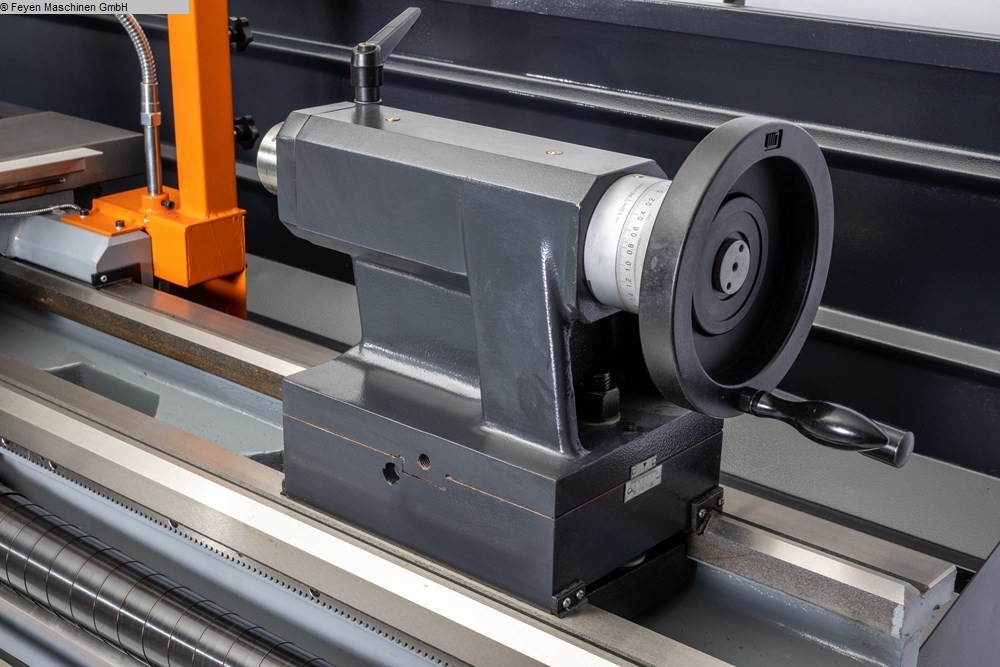

- dia. of quill130 mm
- quill stroke120 mm
- total power requirement7,5 kW
- weight of the machine ca.2,3 t
- dimensions of the machine ca.2,8 x 1,20 x 1,5 m
kein Zusatz angegeben
kein Zubehör angegeben
Description

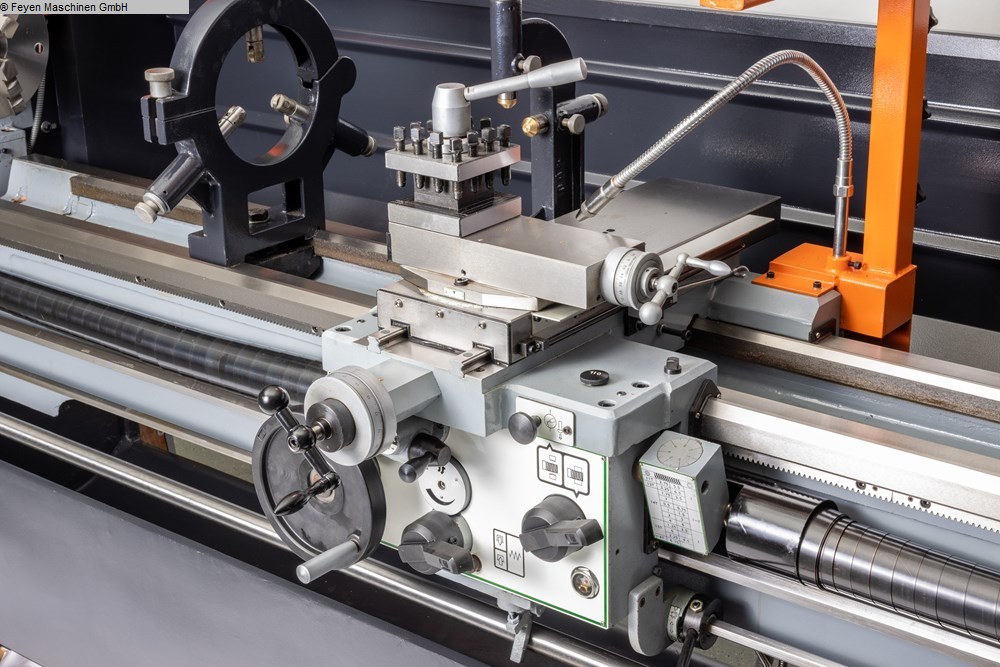

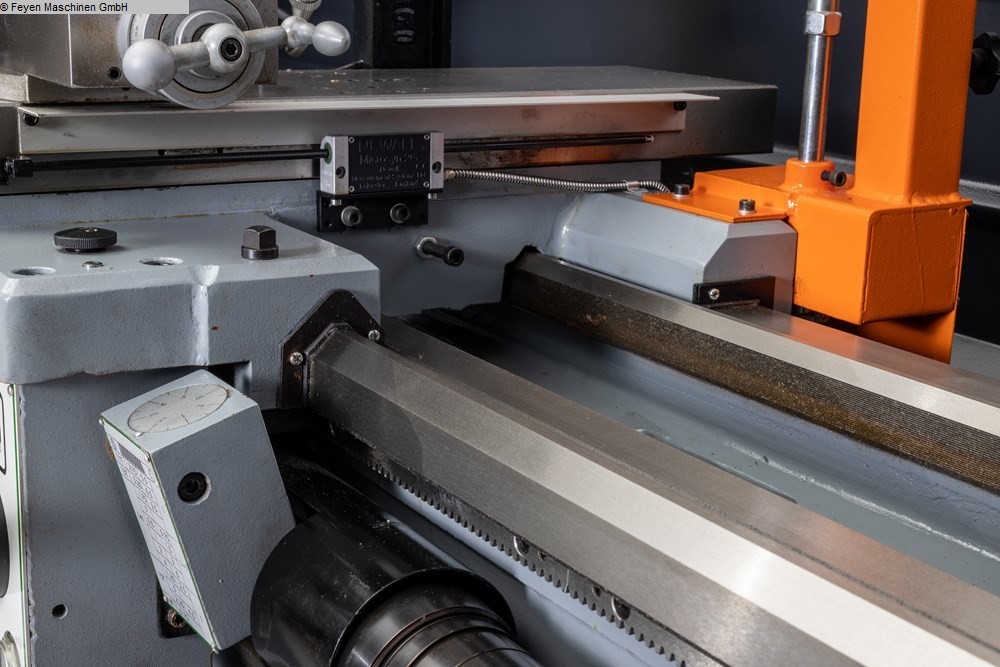

Lathe with precision ground and induction hardened bed. Very suitable for use
in workshops and training centers. Standard accessories include a Newall
digital display. The machine is built according to CE directives. The machine
is also available 1 m and 2 m.
Features:

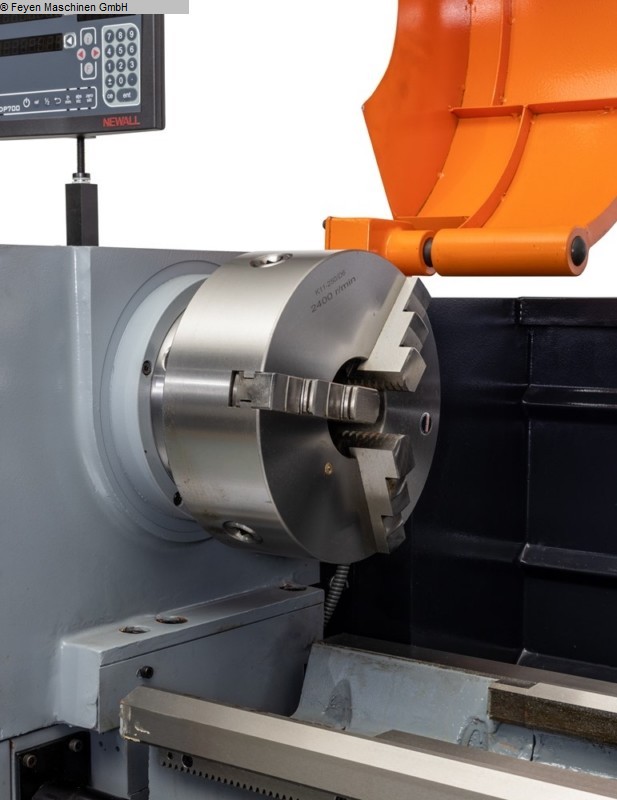

3-jaw chuck 250 mm
4-jaw chuck 315 mm

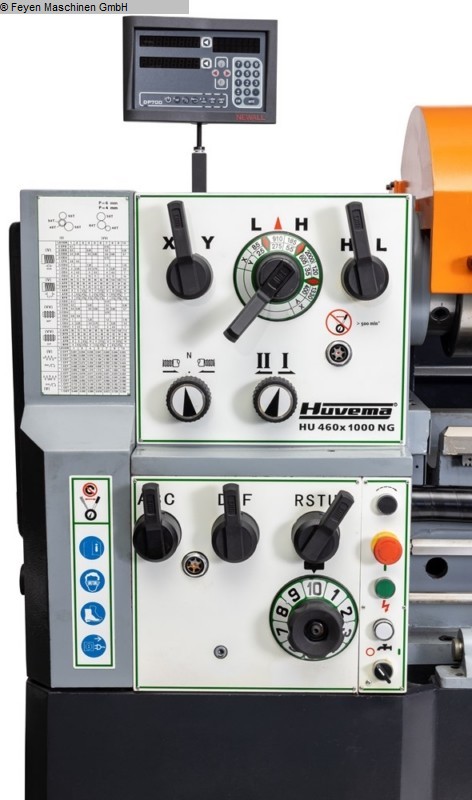

2-axis Newall digital display

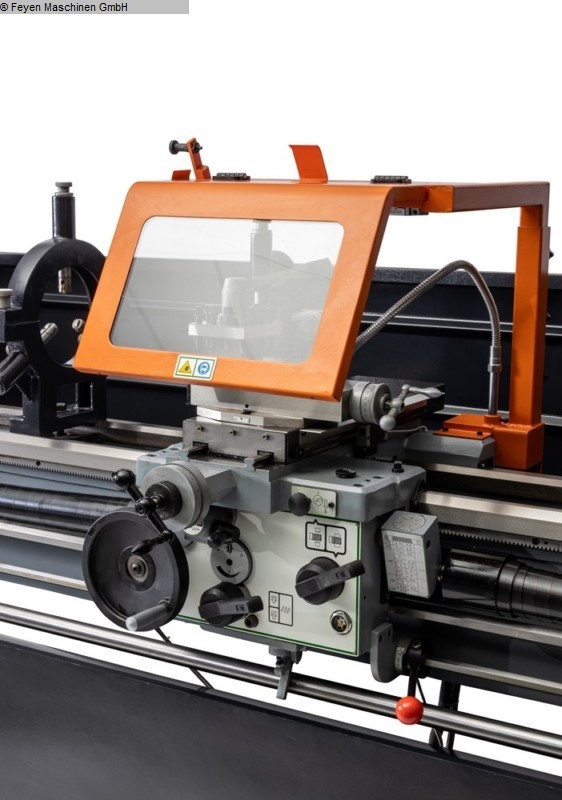

European supported protective cover

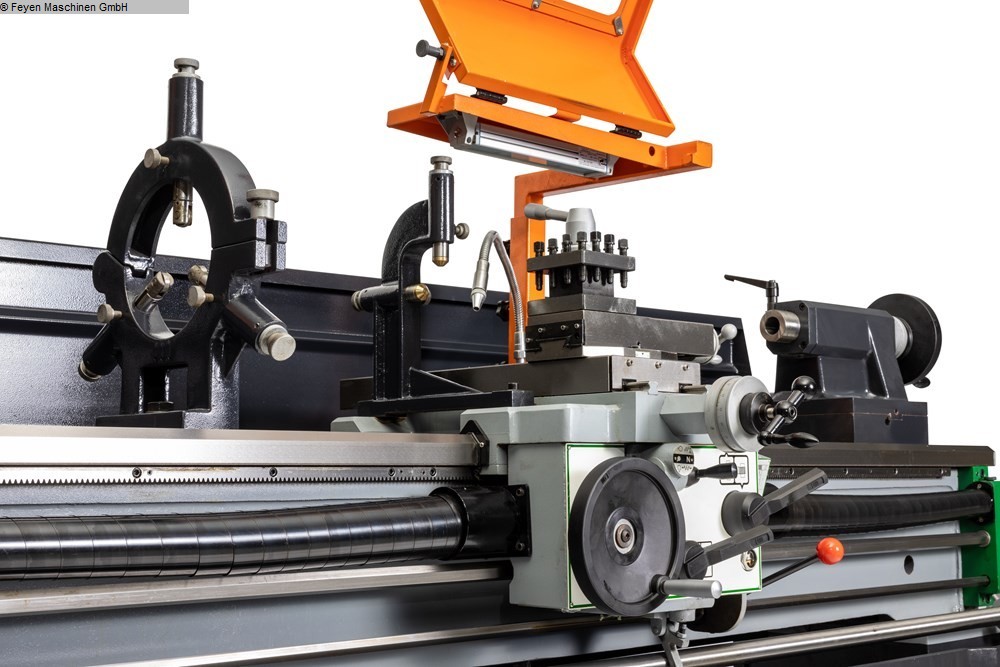

Fixed and travelling steady rest
Halogen lighting
Solid cast iron base frame

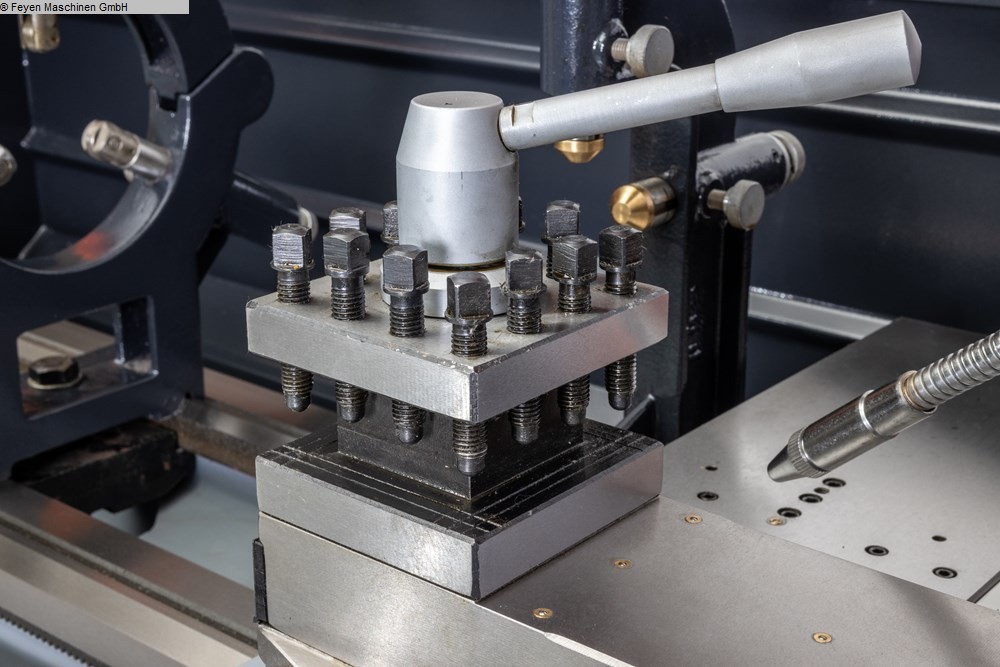

Quadruple steel holder
