• turning diameter over bed460 mm
• turning diameter over slide rest274 mm
• turning length1500 mm
• spindle bore58 mm
• spindle turning speed range25 - 2000 U/min
• turning dia. in gap690 mm
• metric threading41 / 0,1 - 14 mm
• thread - inch60 / 2 - 112 inch.
• thread - module34 / 0,1 - 7 mm
• Whitworth-thread60 / 2 - 112 TPI
• adjustment of the upper slide140 mm
• dia. of quill60 mm
• quill stroke120 mm
• total power requirement5,5 kW
• weight of the machine ca.1,7 / 2,0 t
• dimensions of the machine ca.2,2 x 1,0 x 1,3 m

Lathe with precision ground and induction hardened bed. Very suitable for use
in workshops and training centers. Standard accessories include a Newall
digital display. The machine is built according to CE directives. The machine
is also available 1 m and 2 m.

Features:

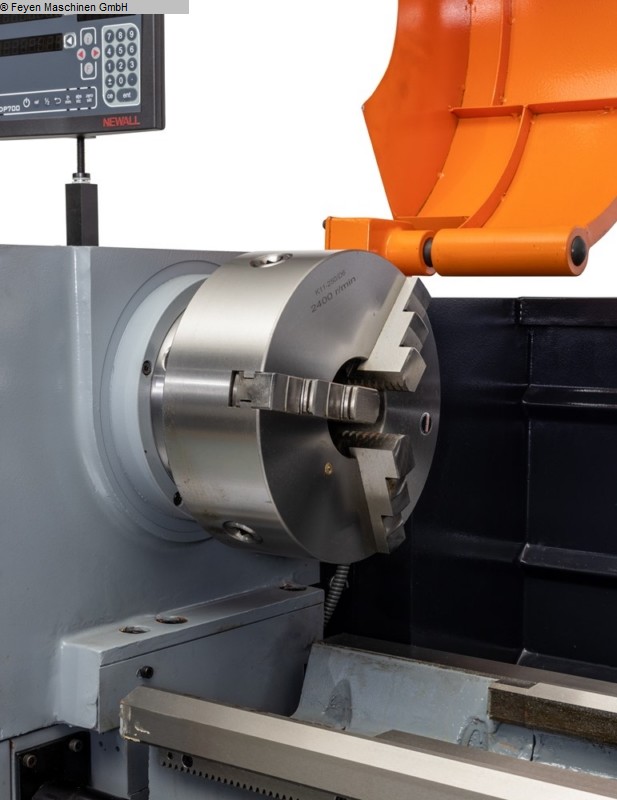

3-jaw chuck 250 mm
4-jaw chuck 31 5mm

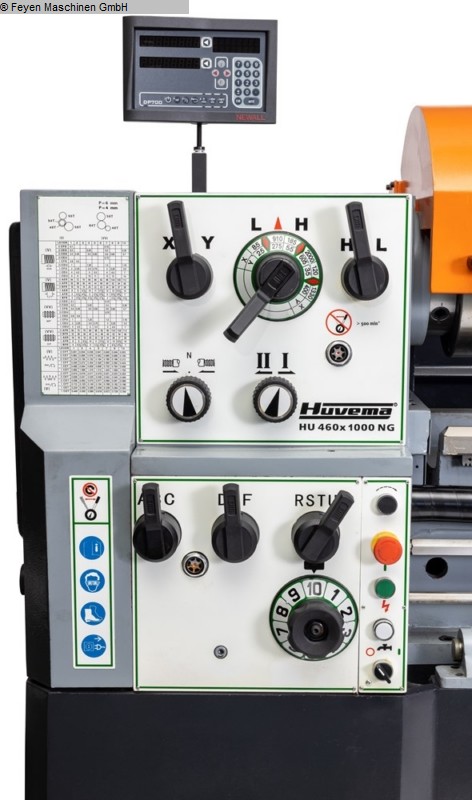

2-axis Newall digital display
European supported protective cover
Fixed and travelling steady rest
Halogen lighting
Solid cast iron base frame

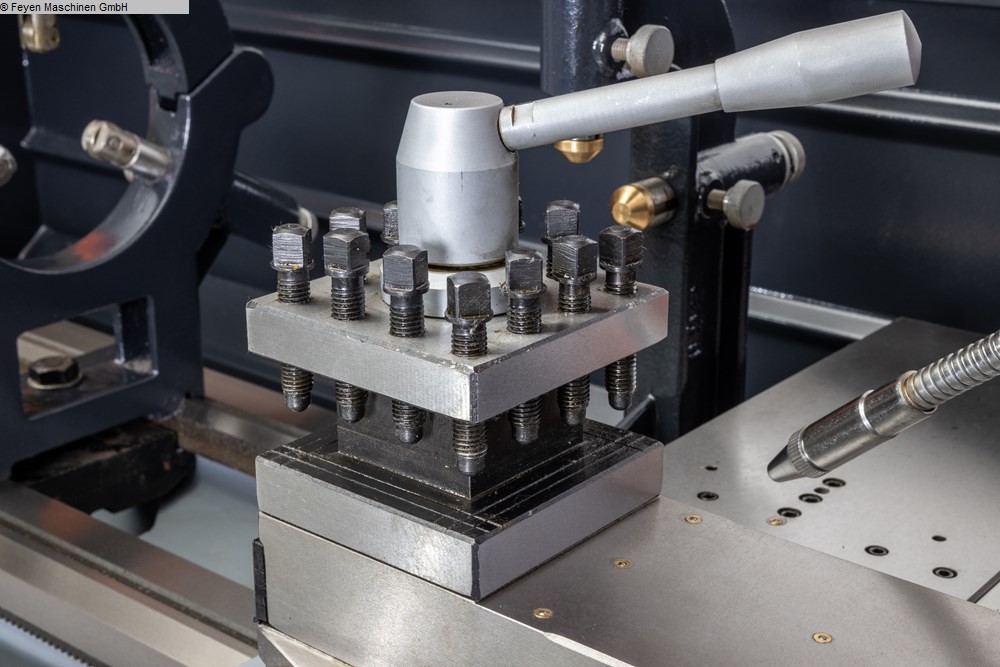

Quadruple steel holder
