Datasheet
Machine details
Technical details
- turning diameter over bed460 mm
- turning diameter over slide rest274 mm
- turning length1000 mm
- spindle bore58 mm
- spindle turning speed range25 - 2000 U/min
- turning dia. in gap690 mm
- metric threading41 / 0,1 - 14 mm
- thread - inch60 / 2 - 112 inch.
- thread - module34 / 0,1 - 7 mm
- Whitworth-thread60 / 2 - 112 TPI
- adjustment of the upper slide140 mm
- dia. of quill60 mm
- quill stroke120 mm
- total power requirement5,5 kW
- weight of the machine ca.1,7 / 2,0 t
- dimensions of the machine ca.2,2 x 1,0 x 1,3 m
kein Zusatz angegeben
kein Zubehör angegeben
Description
Lathe with precision ground and induction hardened bed. Very
suitable for use in workshops and training centers. Standard accessories
include a Newall digital display. The machine is built according to CE
directives. The machine is also available in 1.5 m and 2 m.
Features:
3 jaw chuck 250 mm
4 jaw chuck 315 mm

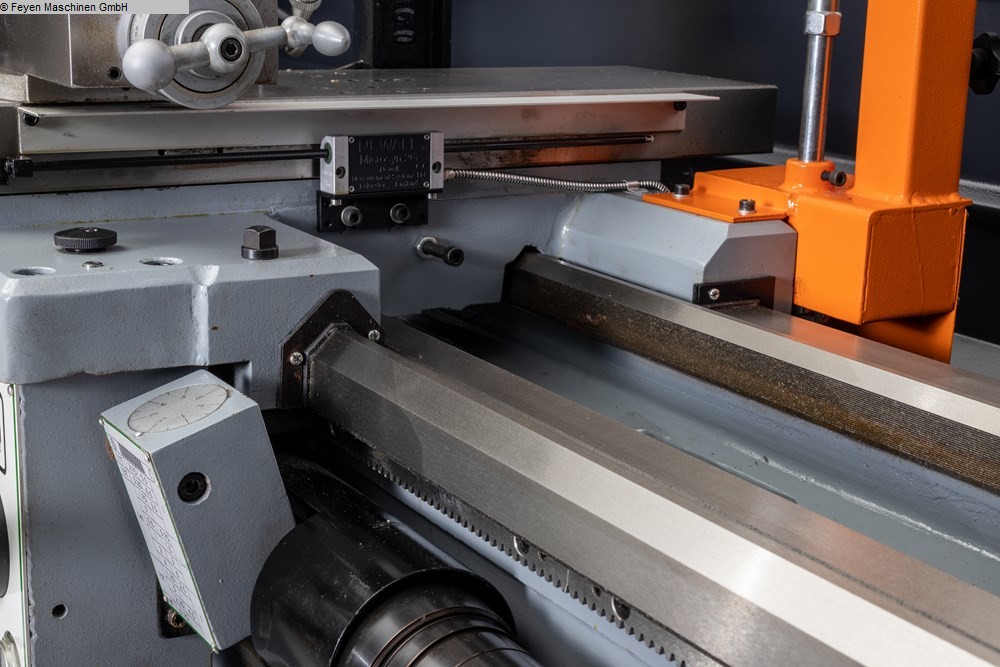

Newall digital readout

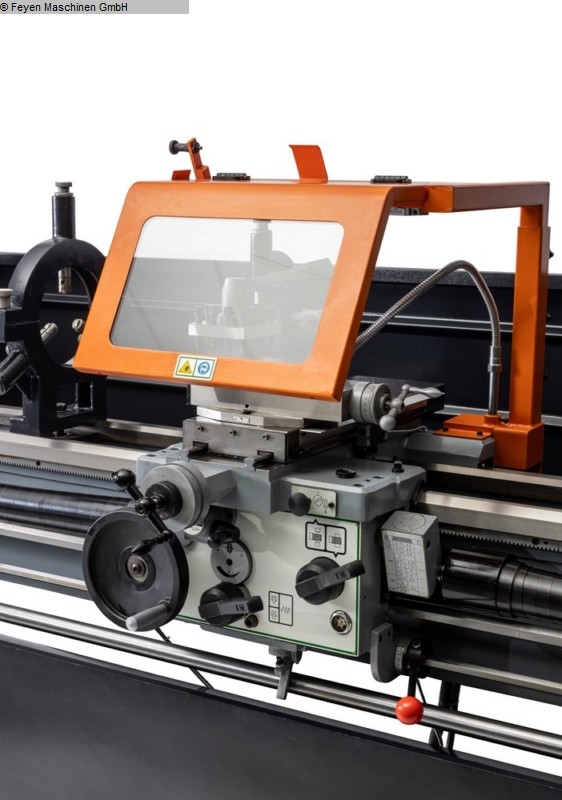

European protective cover

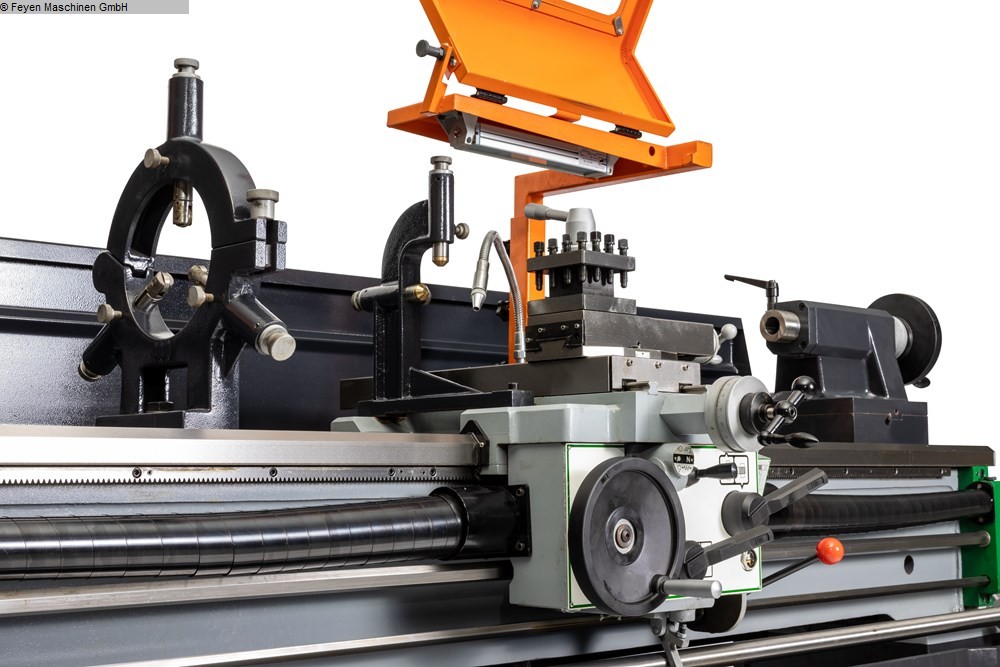

fixed and travelling steady
halogen machine light
solid cast iron base

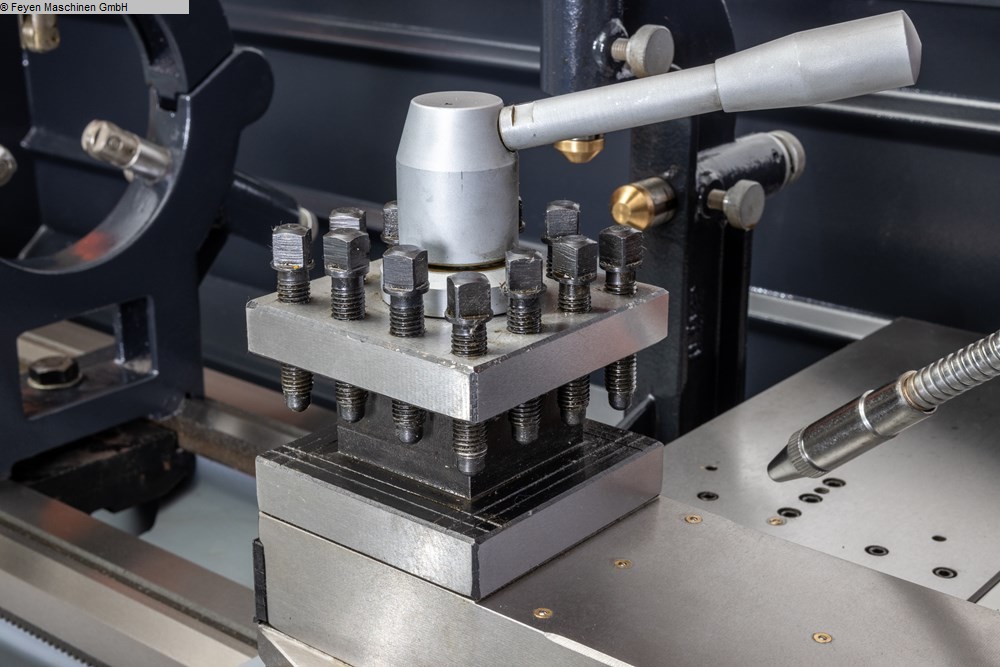

quadruple steel holder
