• Working width3400 mm
• Roller width3600 mm
• Number of rollers2 Stück
• Supporting roller - dia340 mm
• Roller covering - soft rubber75 Grad shore
• Swimming roll - dia270 mm
• Roller covering - soft rubber75 Grad shore
• Pressure line50 N / mm
• Pressure total18 to
• Clouth guiding system for knitted fabricsgeb. Breitstreckwalze
• Liquor trough with guide roll+ Verdrängerkörper
• Drive siderechts
• Operting sidelinks
• Drive shaftdia 80 mm

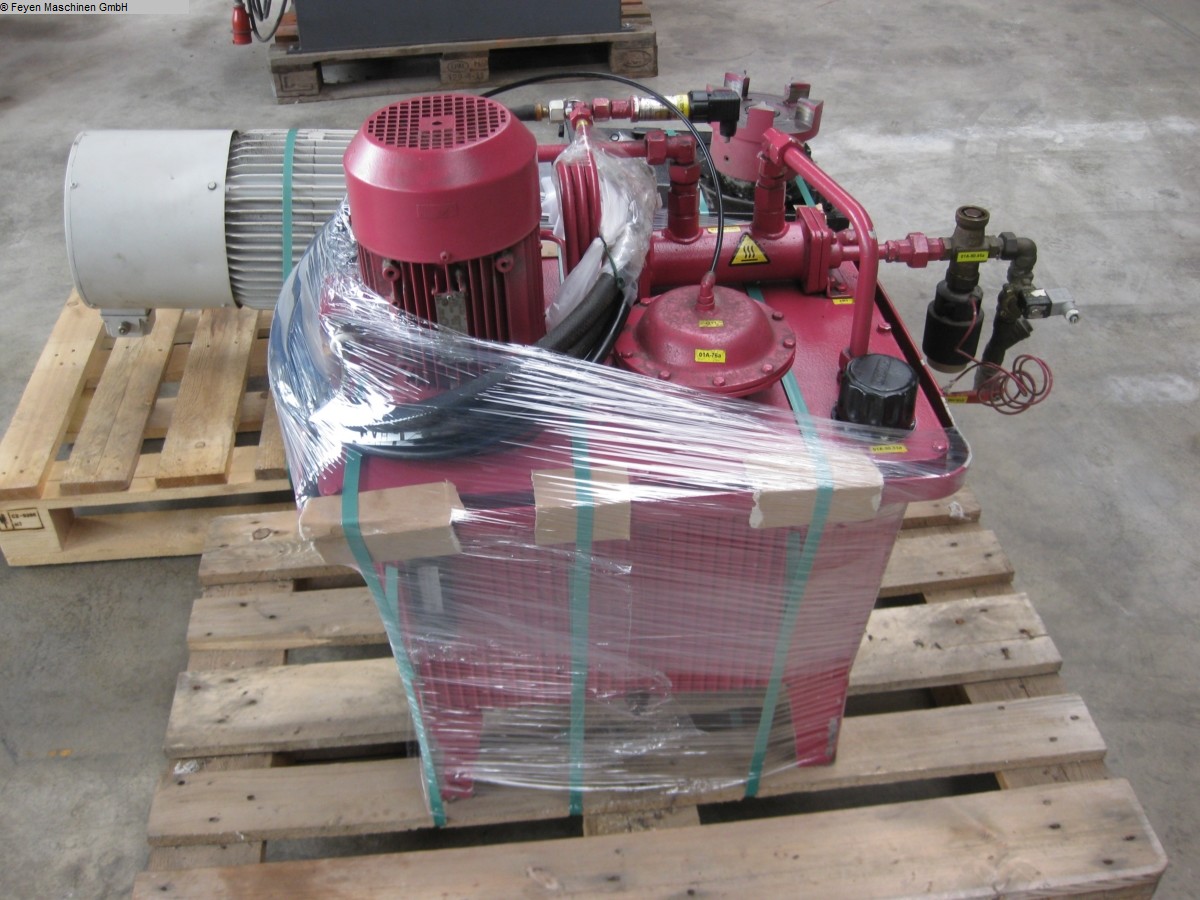

• Hydraulic unit for separately pressureaus Edelstahl

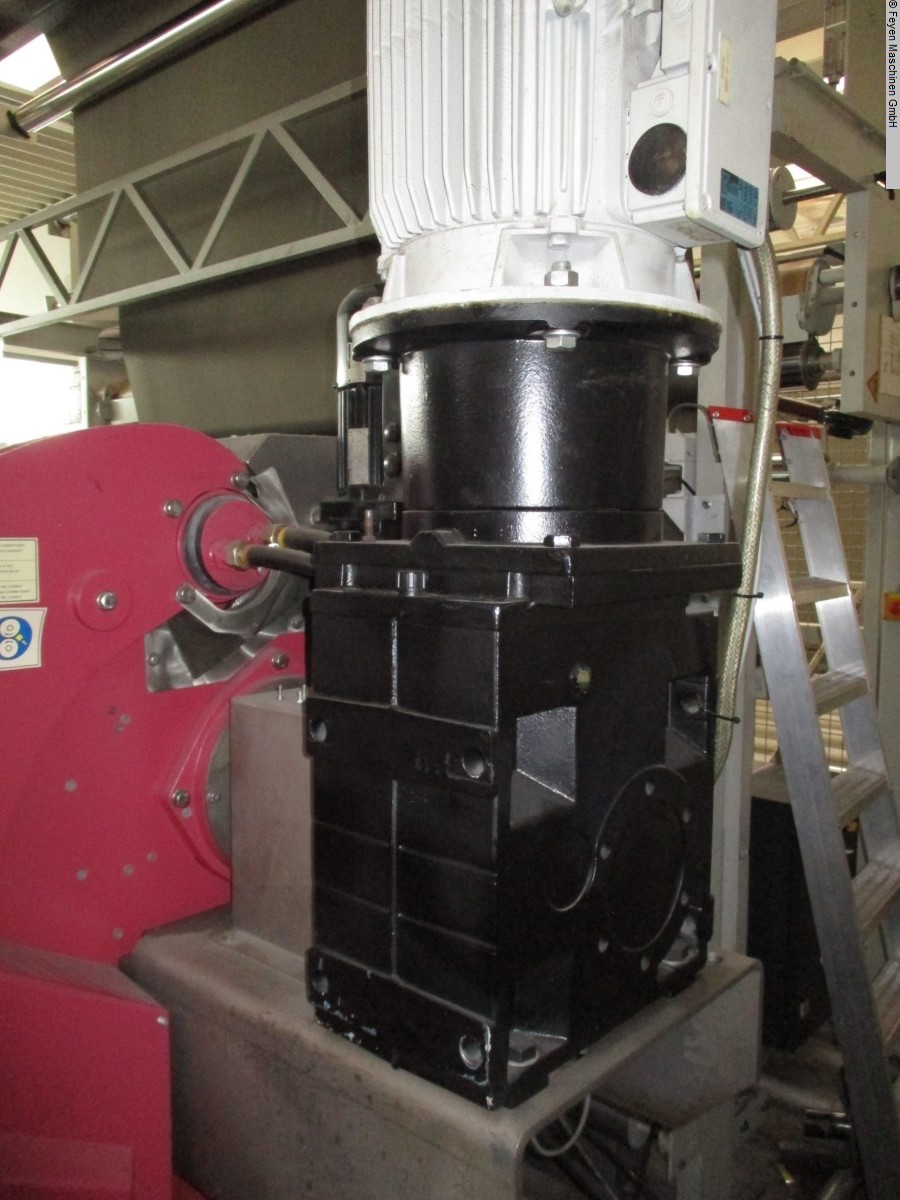

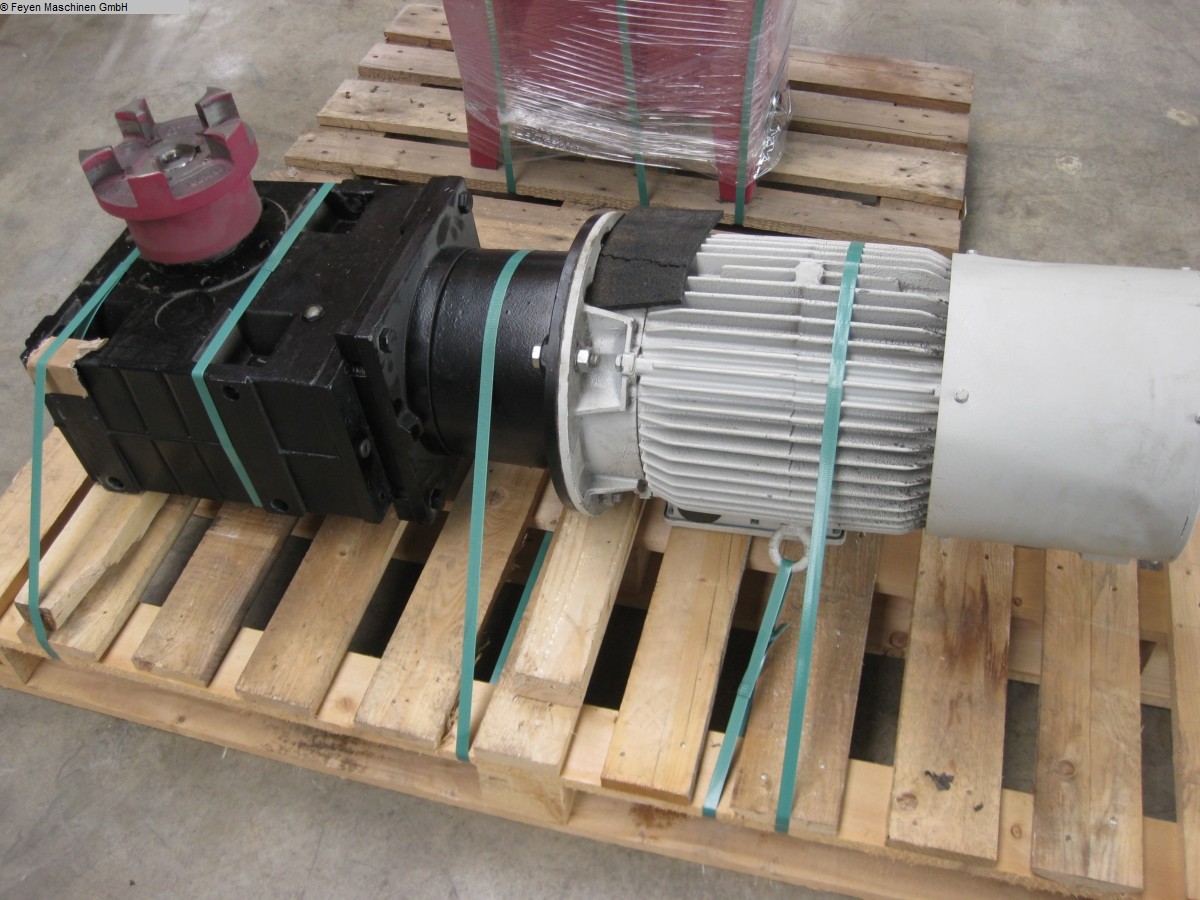

• main drive motor15 kW
• total power requirement20 kW
• weight of the machine ca.6 t
• range L-W-H4,0 x 2,2 x 1,9 mm

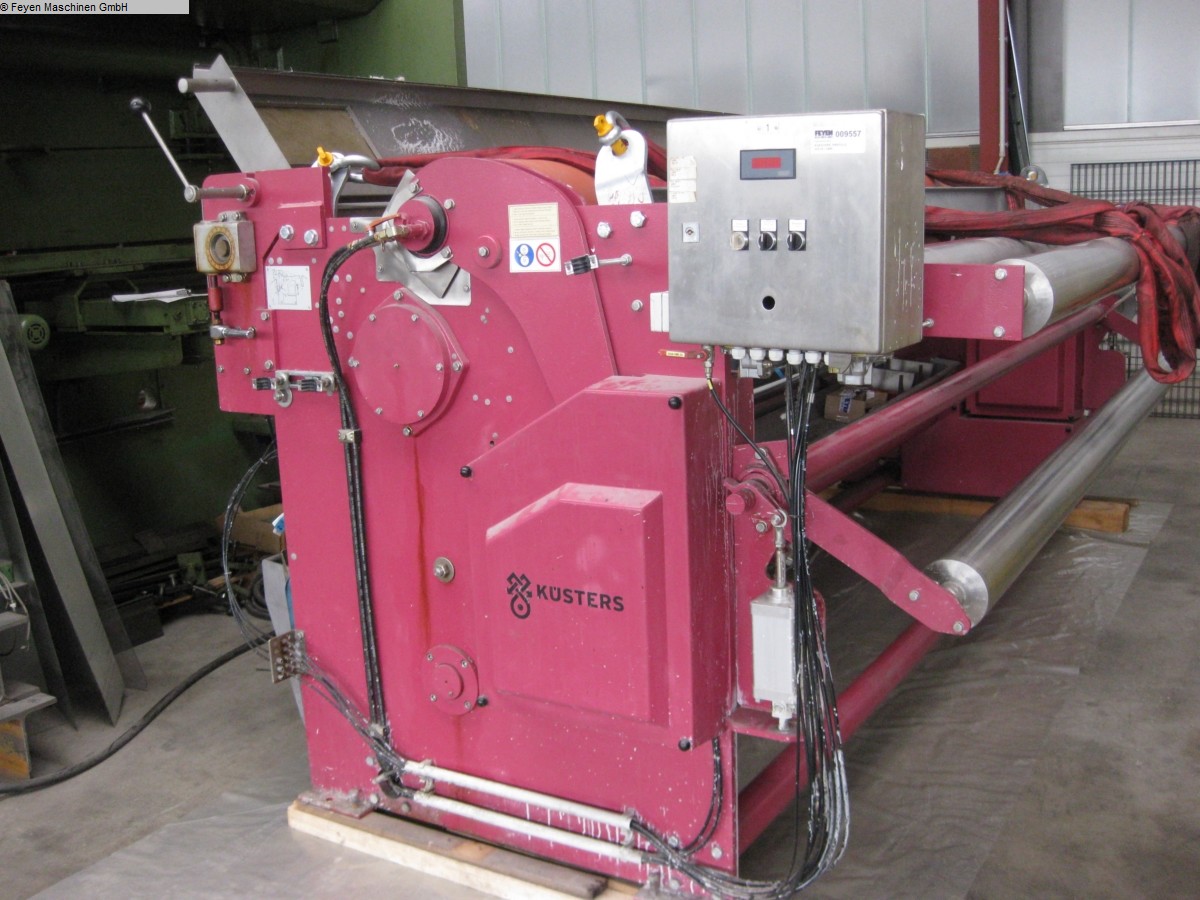

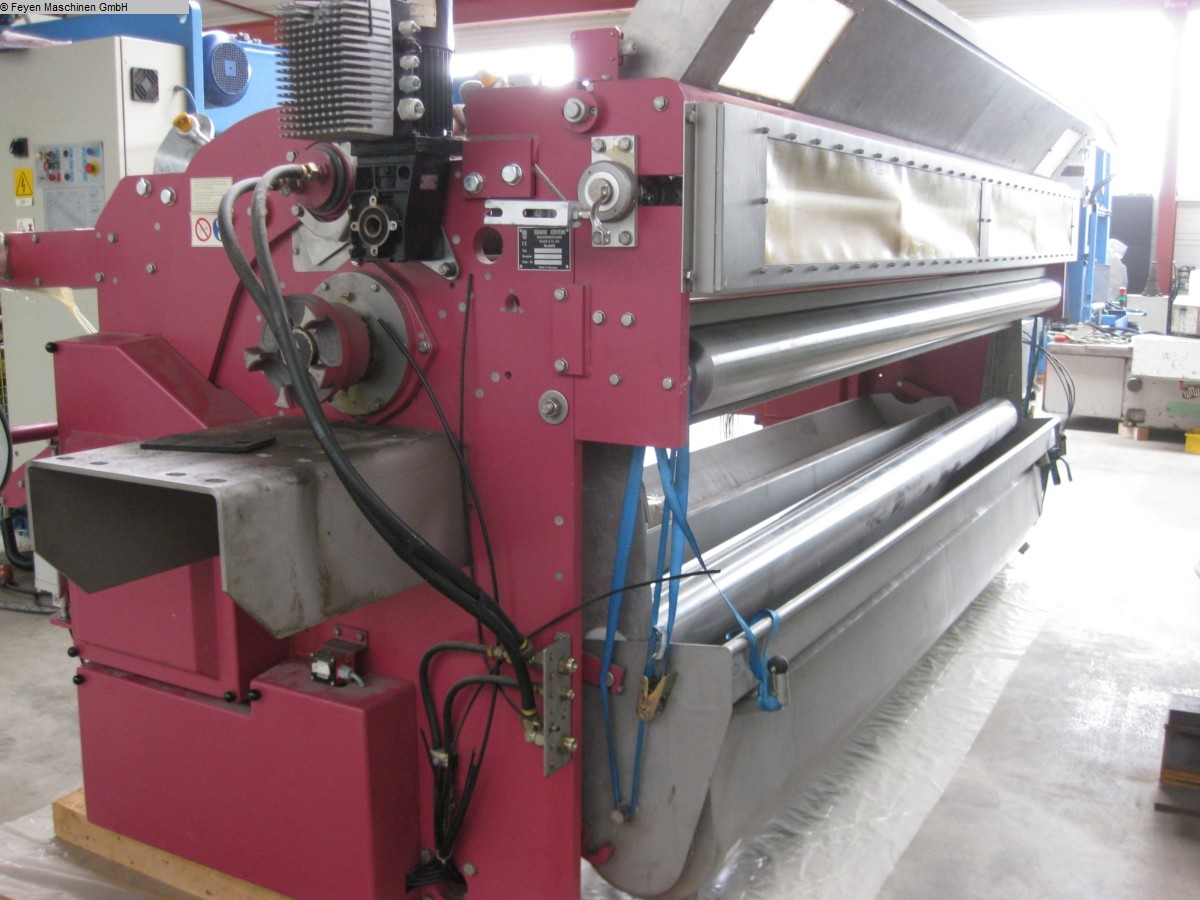

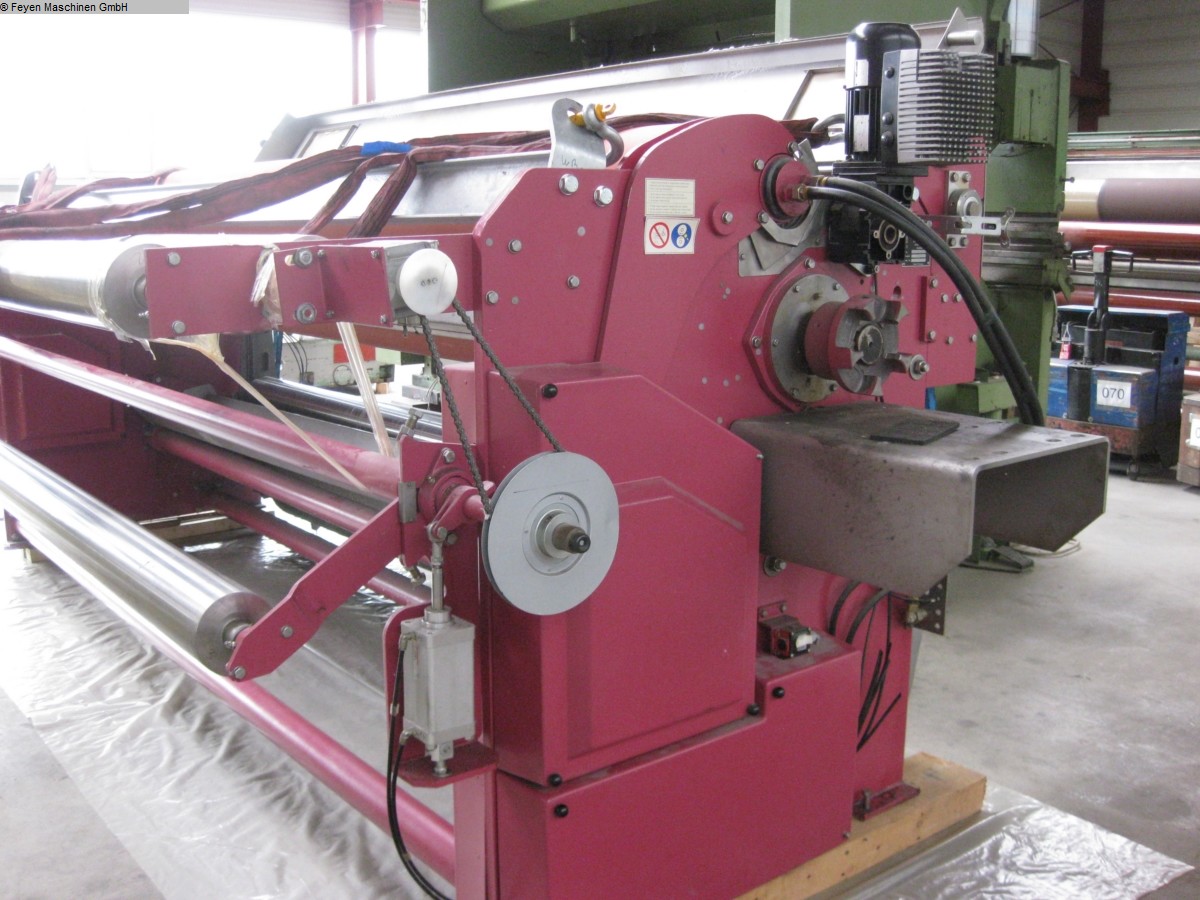

• 2-Bowl-Finishing-Padder with Supporting roll and S-Roll
• driven expander in front of the squeezing nip,
with adjustable guide roll for adaption of the enlacement at the
expander roll.

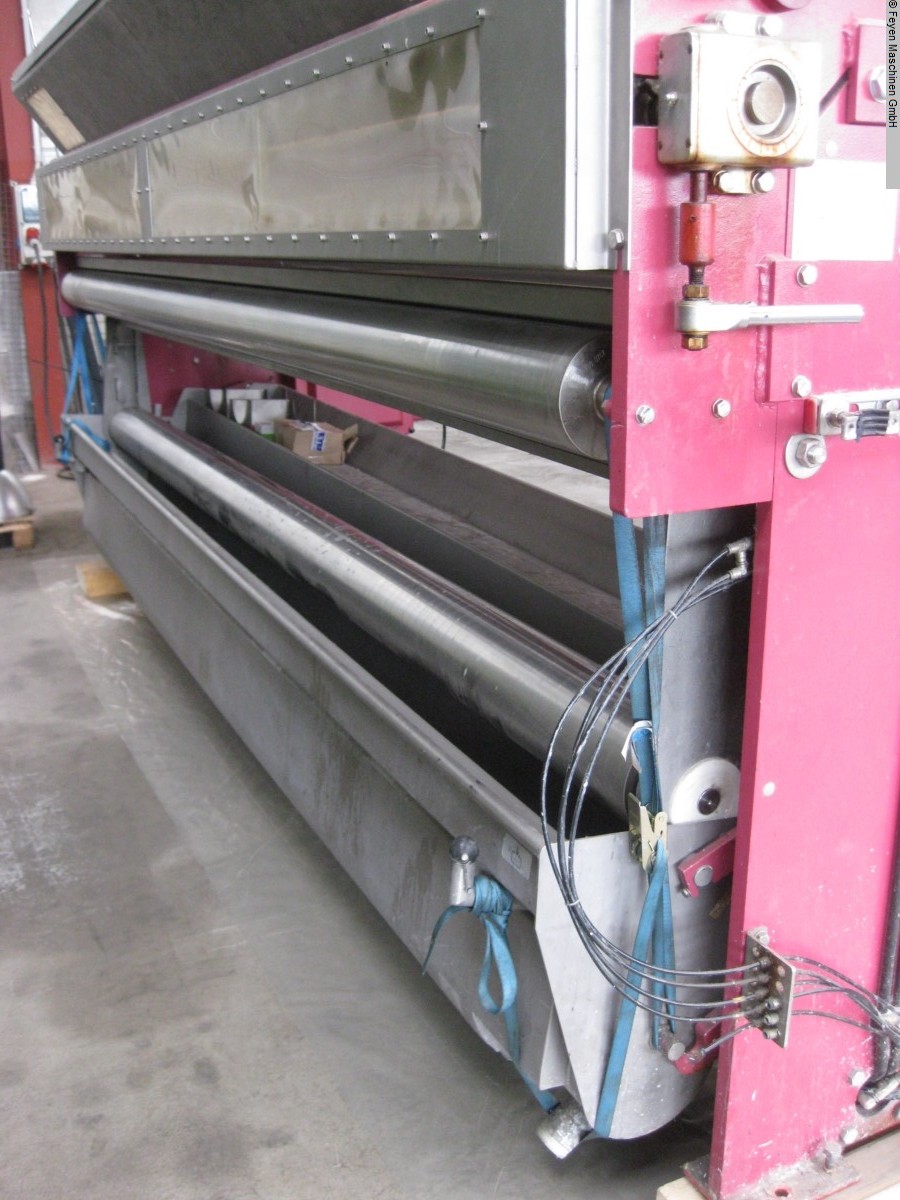

• Liquor trough pneumatically lift- and lowerable, with 1 guide roll
at trough entrance
• 3-Roll-compensator at outlet of the machine,
self-aligning roll can be pneumatically loaded and unloaded
• Machine in complete condition, New FI control is still being added
