Datasheet
Machine details
Technical details
- Working widths4000 mm
- Roller width4200 mm
- Number of rollers2 Stück
- Supporting roller - dia490 mm
- Roller covering - soft rubber75 Grad shore
- Swimming roll - dia340 mm
- Roller covering - soft rubber75 Grad shore
- Pressure line50 N / mm
- Pressure total21 to
- Liquor trough with guide rollheb + senkbar
- Cloth guiding systemLeitwalze vor der Fuge
- Drive sideLinks
- Operting sideLinks
- Compensatorpneum. Entlastung
- Drive shaftDurchmesser 70 mm
- required power30 m/min =10 kW
- Hydraulic unit for combined pressure
kein Zusatz angegeben
kein Zubehör angegeben
Description

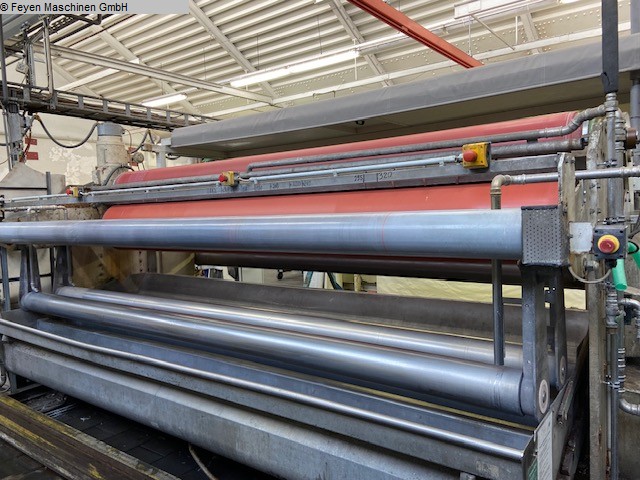

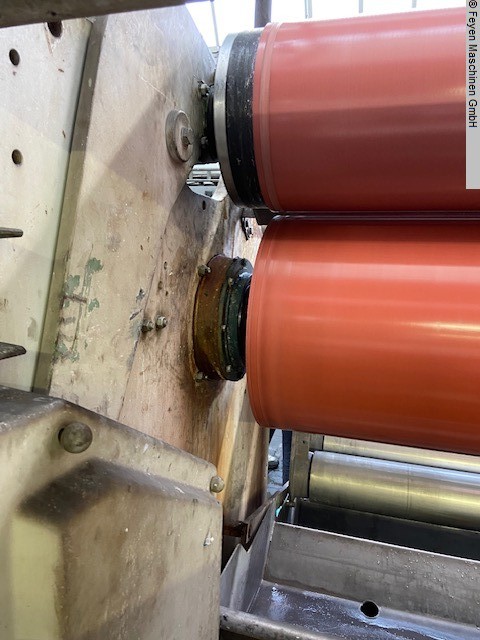

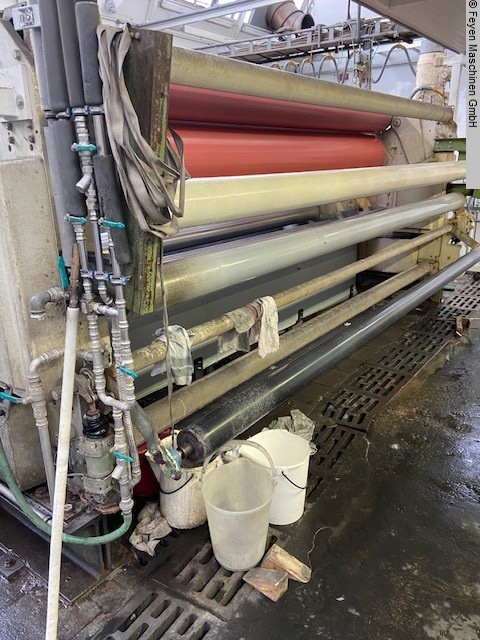

2-Bowl-Finishing-Padder with 1 Swimming roll (S-Roll),
with double-trough for double-dipping
can be used as full-bath-dipping or indirect back swash
machine can be compeletely overhauled before delivery

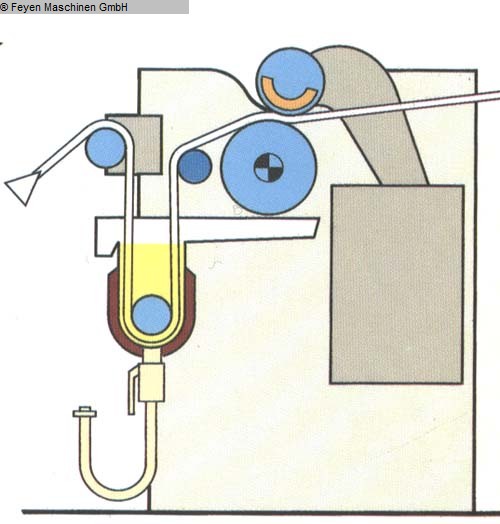

(The picture is showing a scheme of this padder type)
in addition a new frequency drive is possible for the adaption of
this machine into a complete plant
