• Working widths5200 mm
• Roller width5400 mm
• Number of rollers2 x S-Walze Stück
• Swimming roll - dia350 mm
• Roller covering - soft rubber75 Grad shore
• Pressure line40 N / mm
• Pressure total21 to
• Nip Dyeing system
• Capacity of dye tubca. 20 Liter
• Cloth guiding system for woven goodsLeitwalze vor Fuge
• Hydraulic unit for separately pressure
• Drive shaftohne Antrieb
• weight13 t
• dimensions7 x 2 x 2,7 m

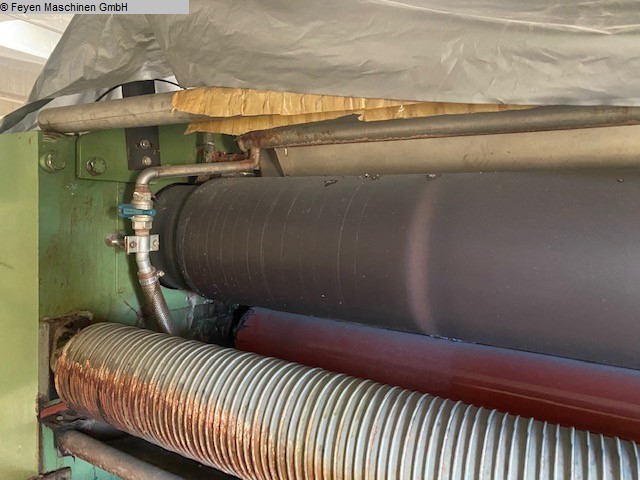

• Dyeing padder with two "Swimming Rolls", horizontally arranged,
• Insert for gusset dyeing,
• drip pan underneath the s-rolls,
• Machine is completely overhauled before delivery, we deliver with "warranty",

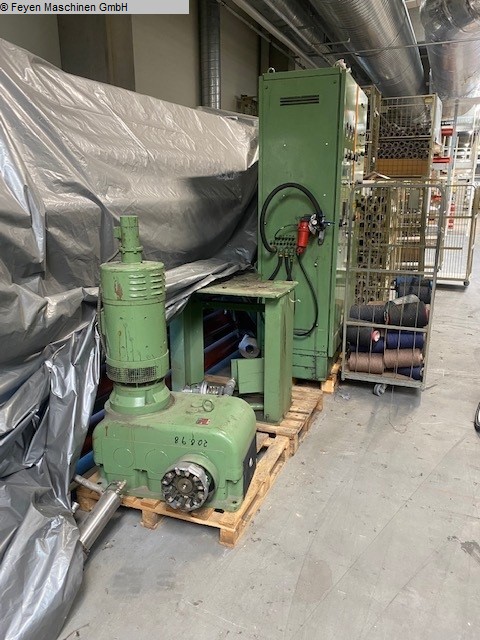

• Hydraulics available, drive and control must be supplemented,
