Datasheet
Machine details
Technical details
- Working widths1600 mm
- Roller width1800 mm
- Number of rollers2 Stück
- Supporting roller - dia320 mm
- Roller covering - ebonit100 Grad shore
- Swimming roll - dia160 mm
- Roller covering - synthetic PU90 Grad shore
- Pressure line50 N / mm
- Pressure total9 to
- Drive siderechts
- Operting sidenach Auftrag
- Drive shaftDurchmesser 70 mm
- Hydraulic unit for combined pressure
kein Zusatz angegeben
kein Zubehör angegeben
Description

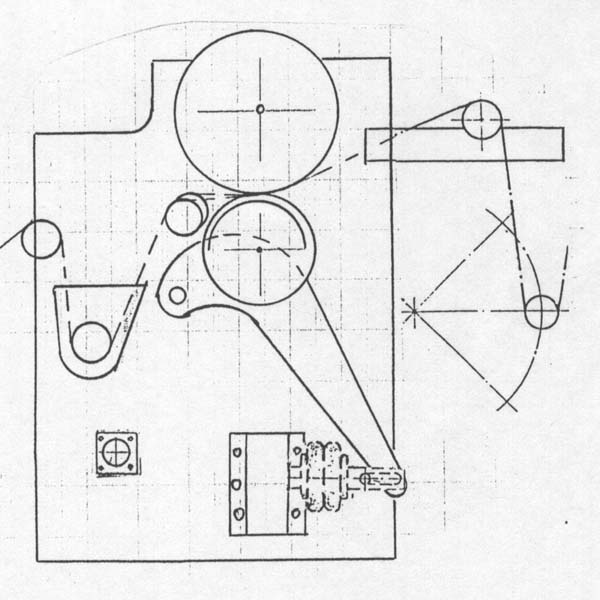

High efficiency squeezer with 1 swimming-Roll (S-Roll),
It is a supporting roll and a S-roll type 75 ( Aquaroll ),
They were mounted in the new machine frame.
Machine will be completely refurbished before delivery. We grant a warranty.
(Photo is showing a reconditioned machine which is ready for dispatch)
