• Working width3400 mm
• Roller width3600 mm
• Number of rollers2 Stück
• Supporting roller - dia320 mm
• Roller covering - soft rubber75 Grad shore
• Swimming roll - dia270 mm
• Roller covering - soft rubber75 Grad shore
• Pressure line50 N / mm
• Pressure total15 to
• Cloth guiding system for woven fabricsBreithalter
• Drive shaftdia 80 mm
• Hydraulic unit for separately pressureAluminium
• Drive sidenach Bedarf
• Operting siderechts
• Compensatormit pneum. Entlastung

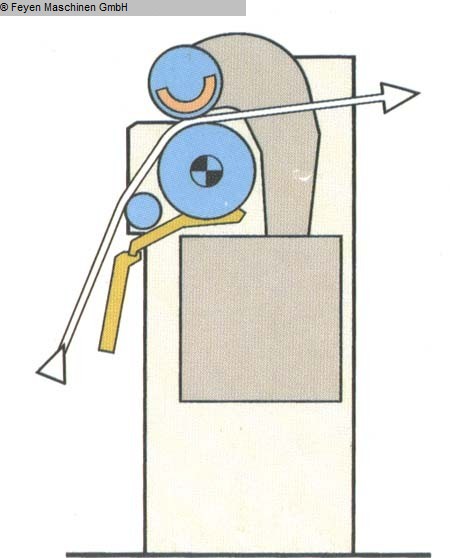

• 2-High efficiency squeezer with one swimming roll (S-Roll) & one support-roll
• fabric guidance for woven fabrics
• new drive additionally possible,
• spreaded expander in front of the nip, without trough
• new drive is possible for V=250 m/min,

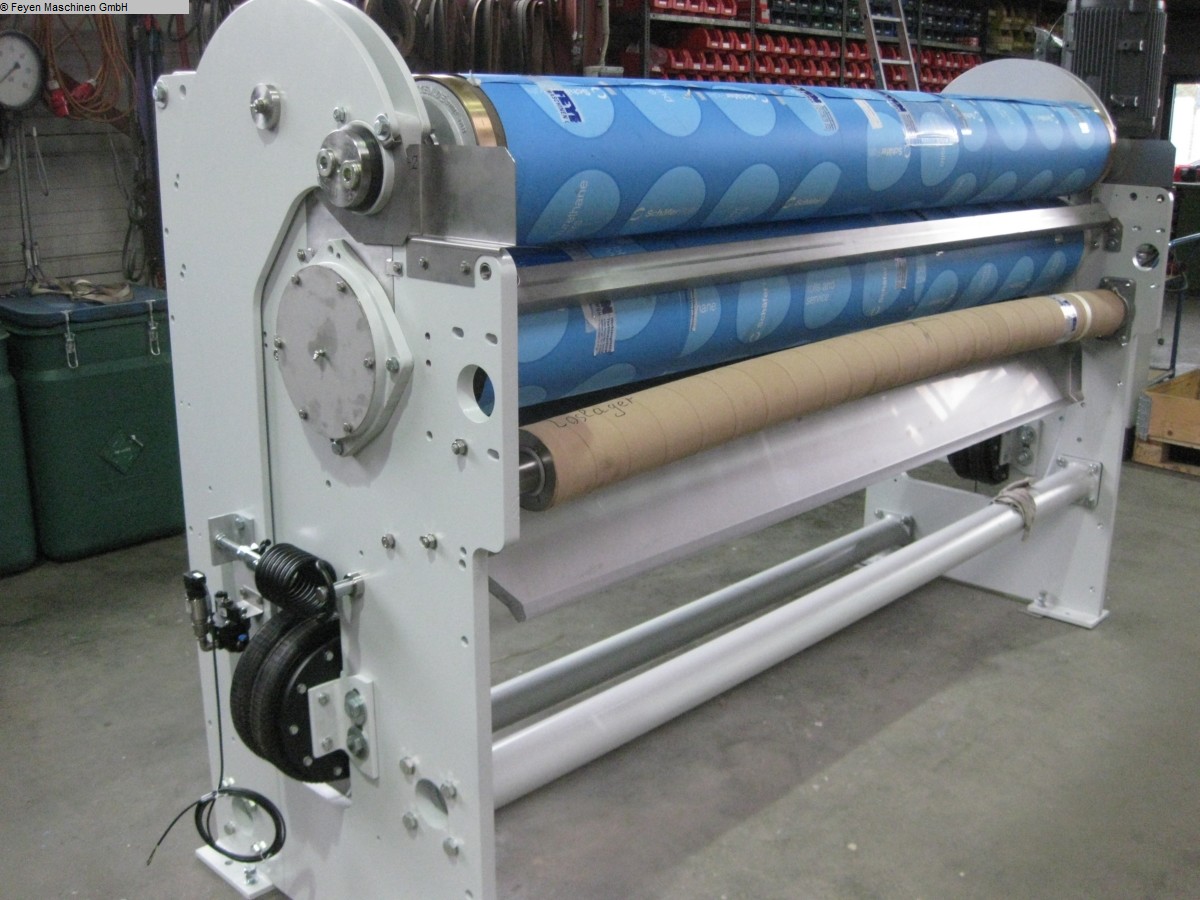

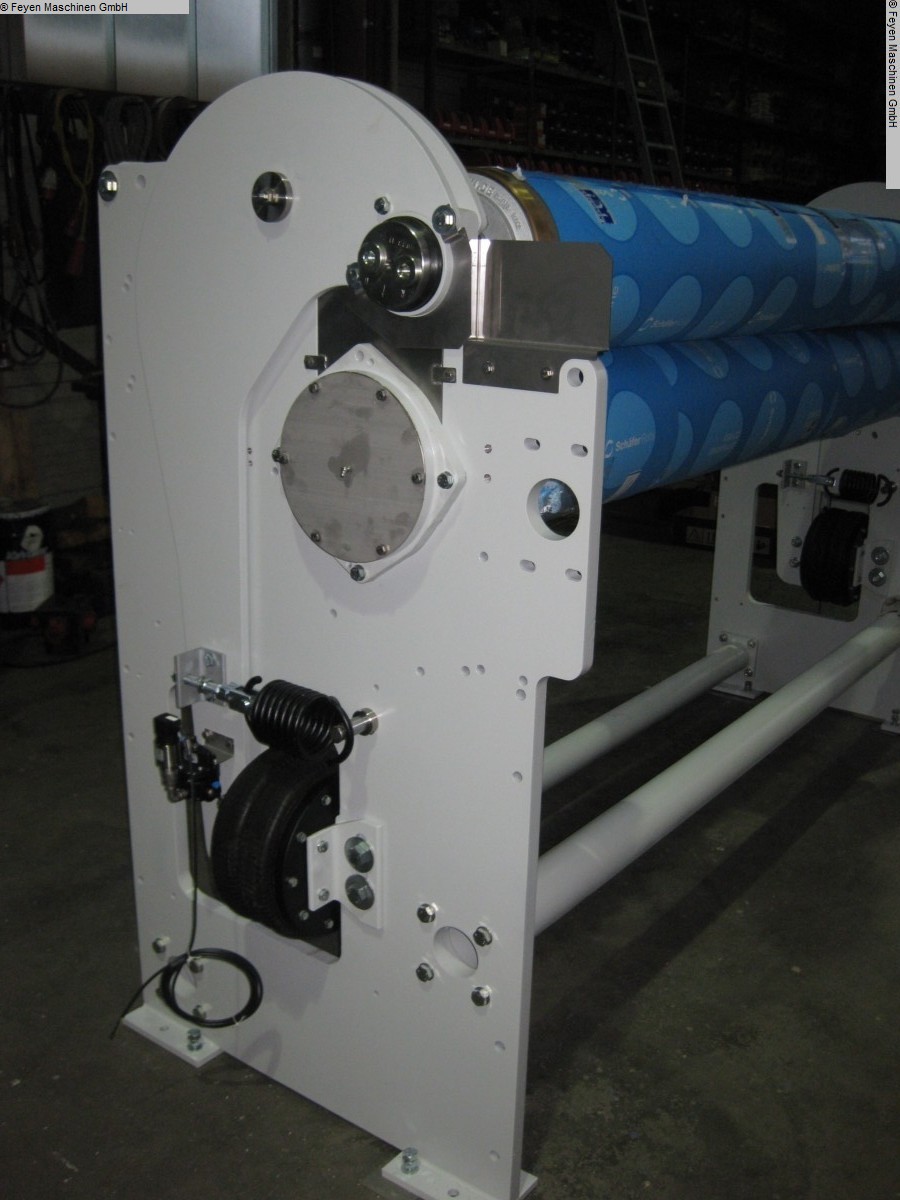

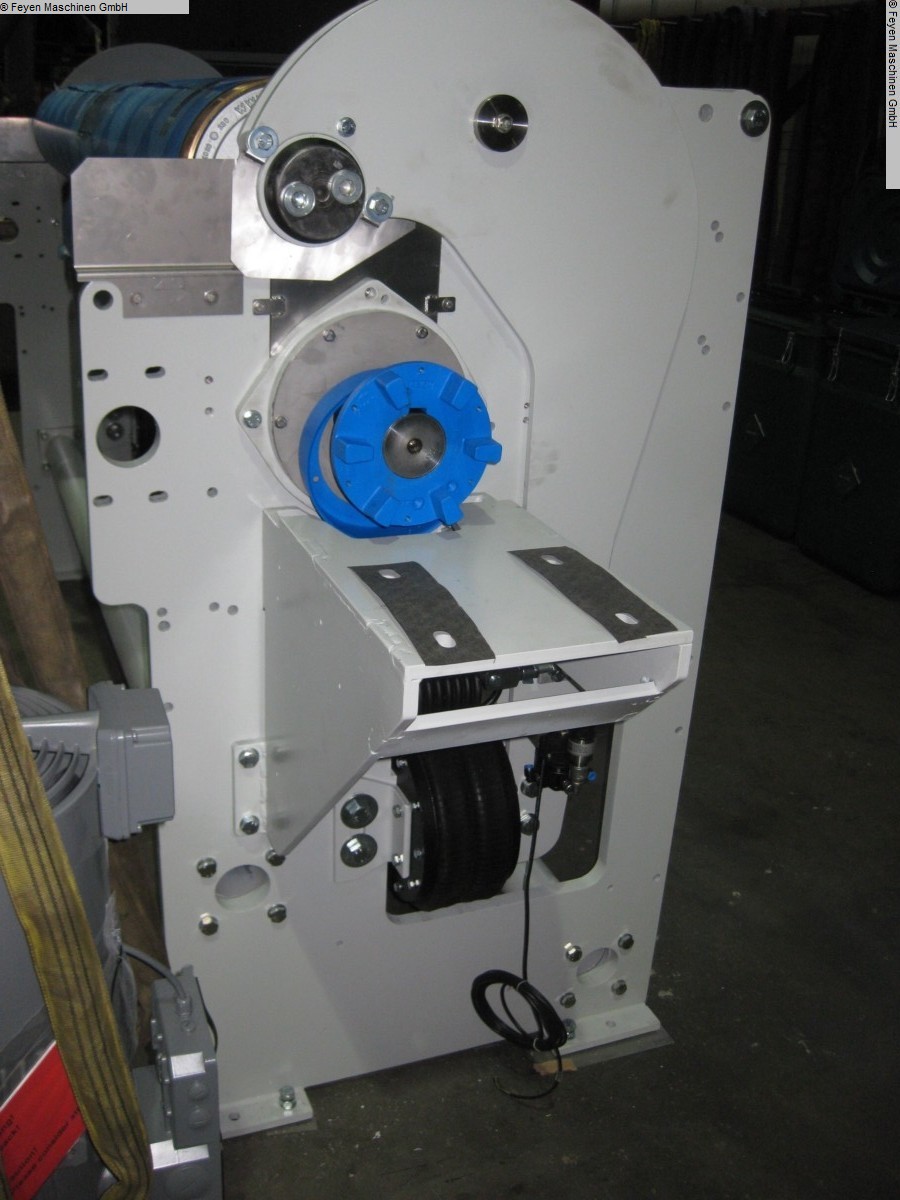

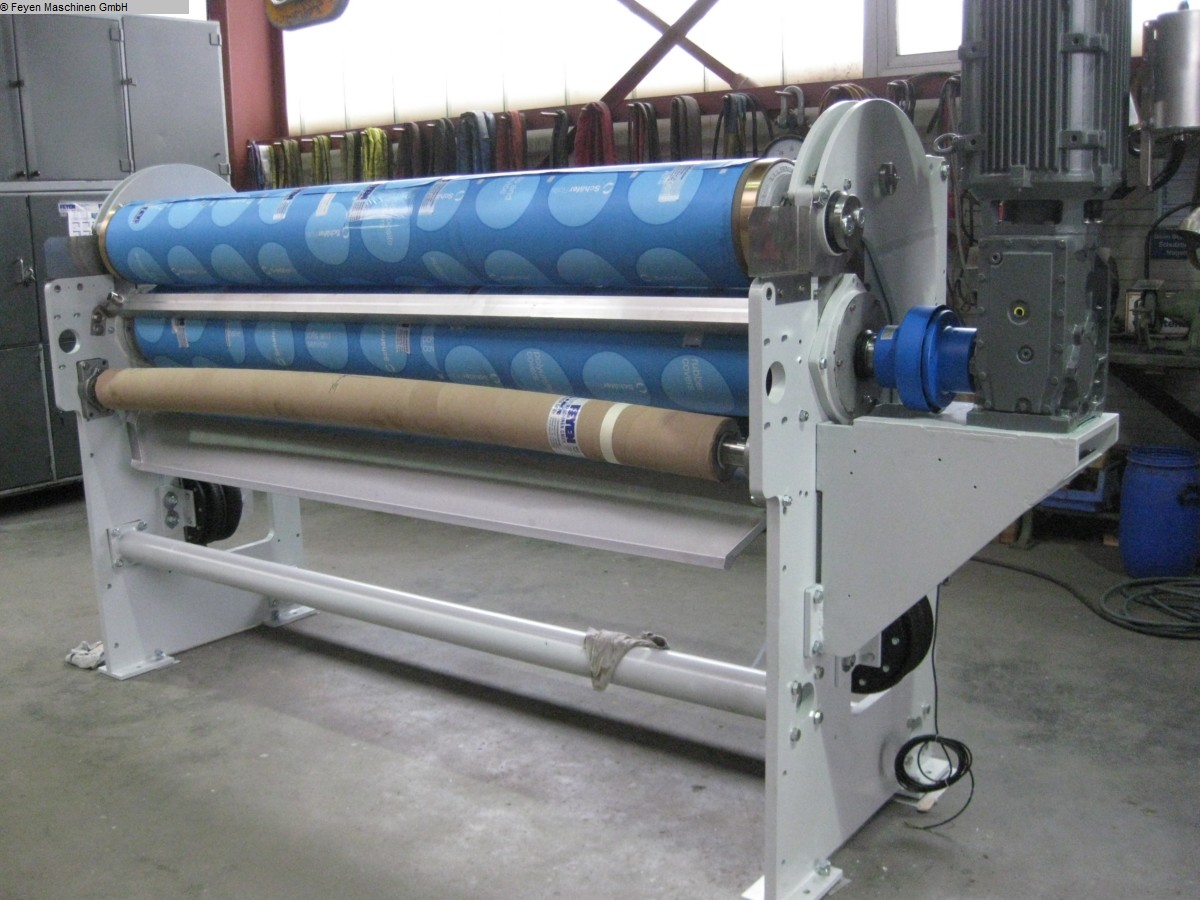

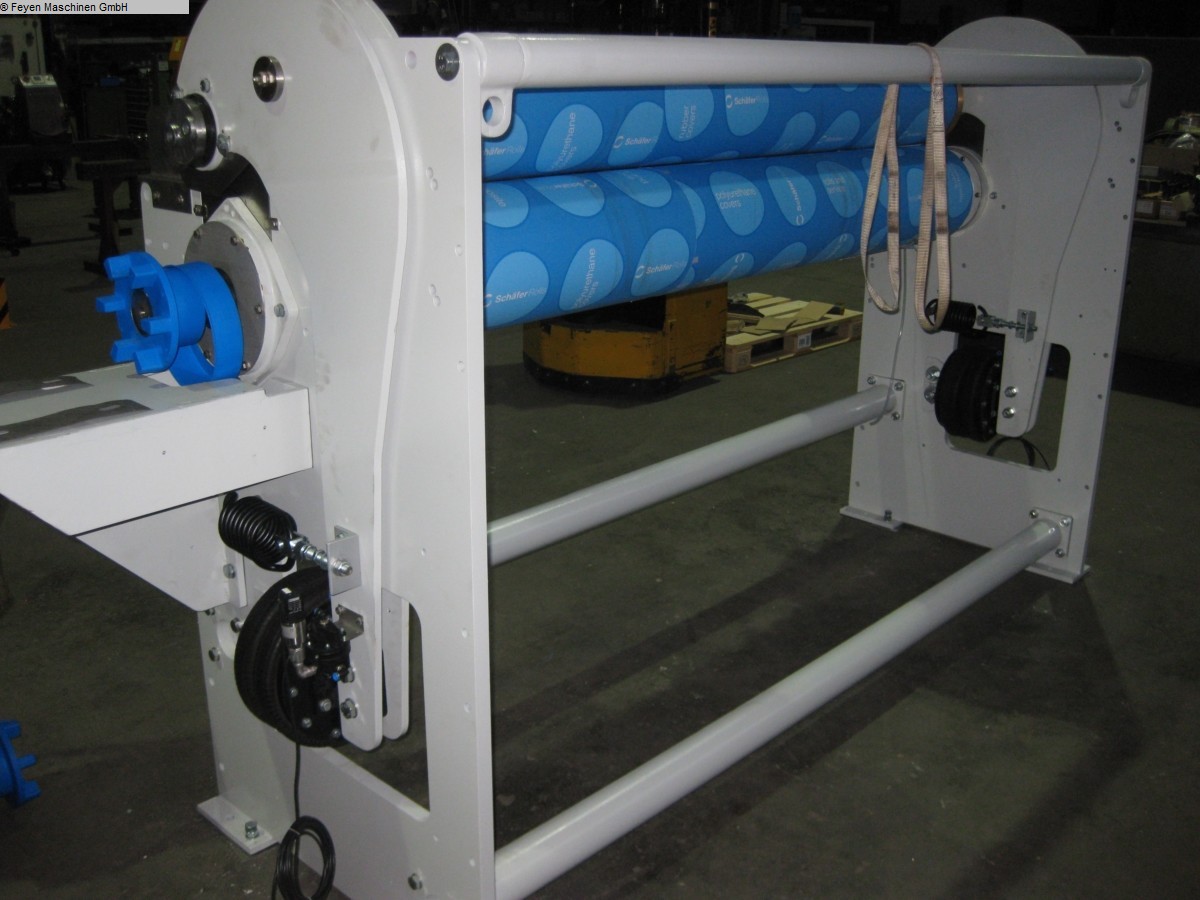

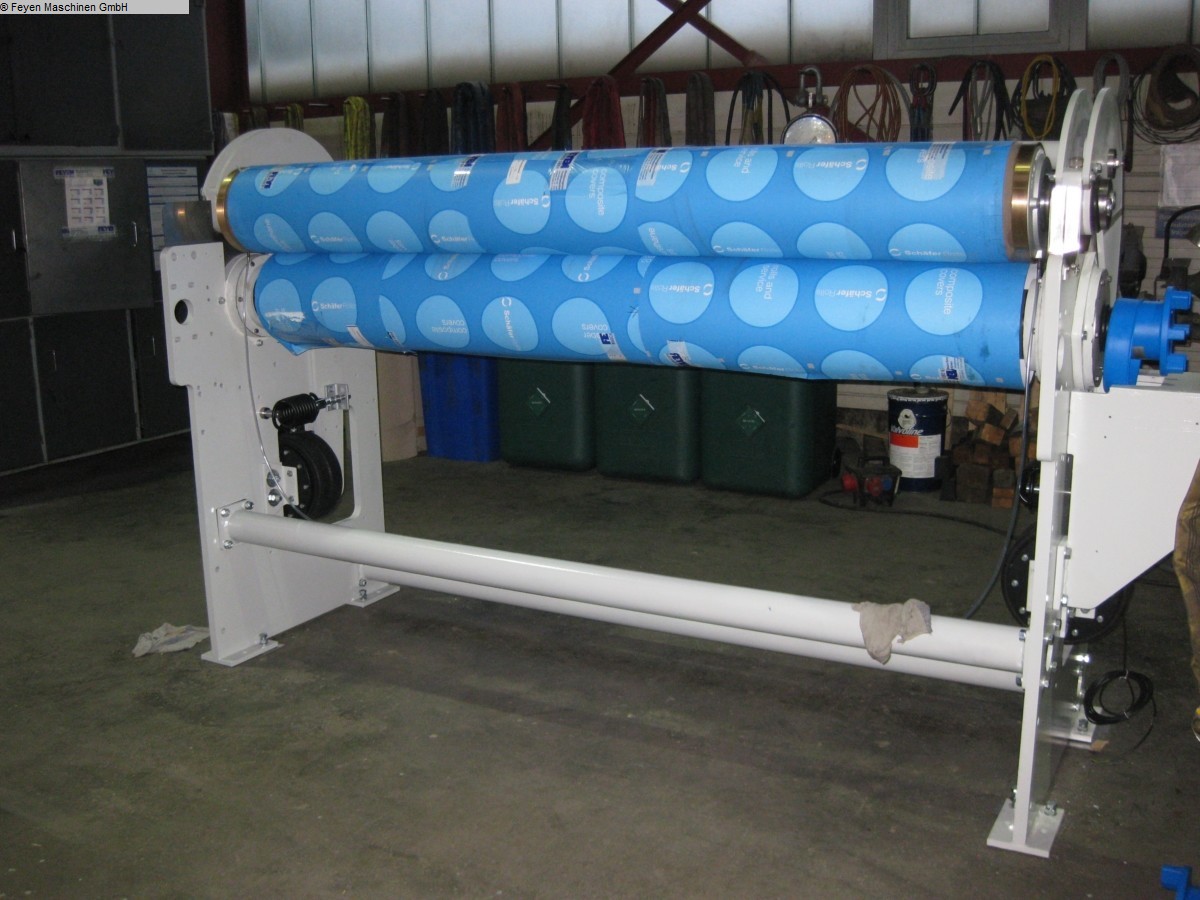

• the photos show a new machine being assembled.
