• Working width3200 mm
• Roller width3400 mm
• pressure70 t
• Pressure line205 N / mm
• Number of rollers2 Stück
• Upper roll460 dia
• Roller coveringStahl -Schreinergravur
• Heating - upper rollThermo-Öl
• Lower rollS-Walze
• Roller coveringmit Flexroll-Manchon
• diameter of lower rolls500 dia
• Clouth speed8 - 100 m/min
• main drive motor32 kW
• Heating - upper roll65 KW
• voltage380 V / 50 Hz
• current capacity125 KW
• Weight18 to
• dimensions of the machine ca.6,0 x 6,0 x 3,0 m

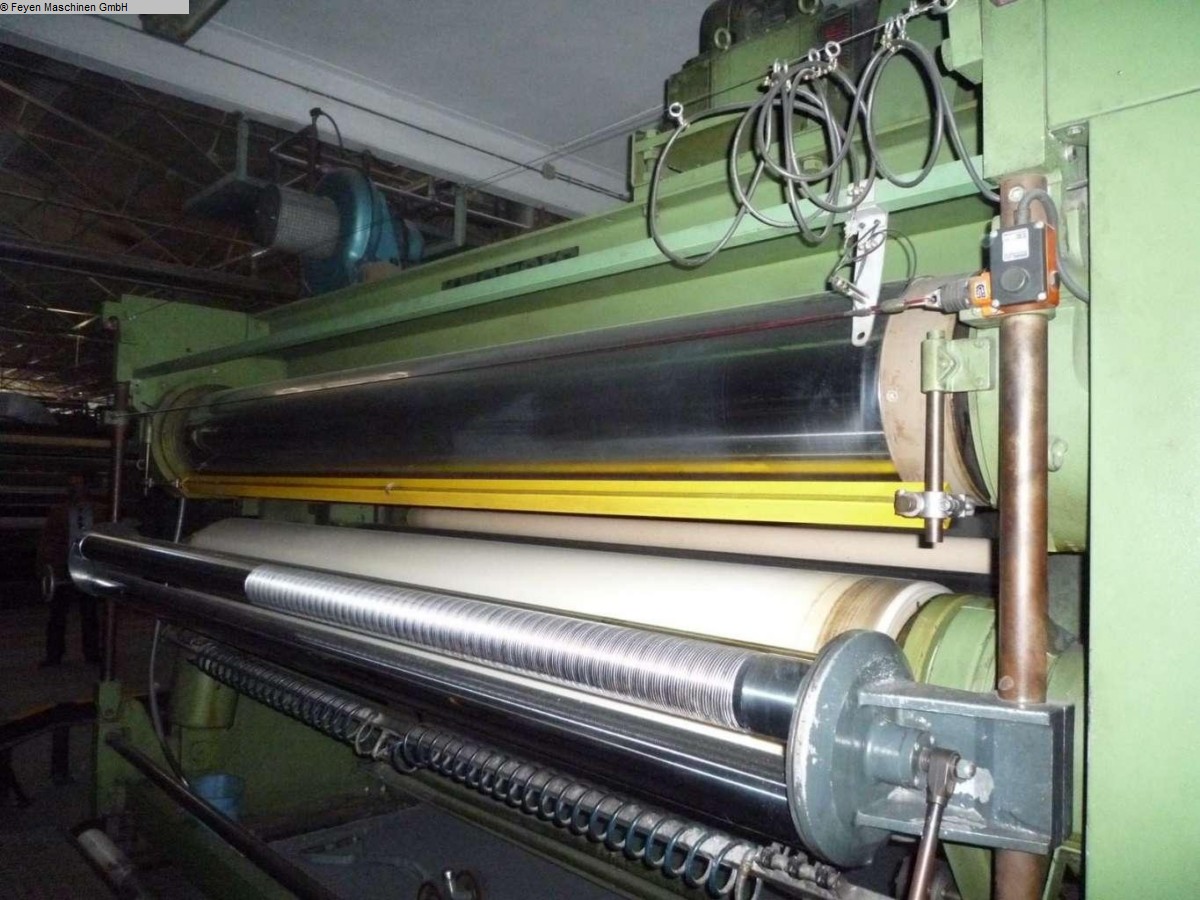

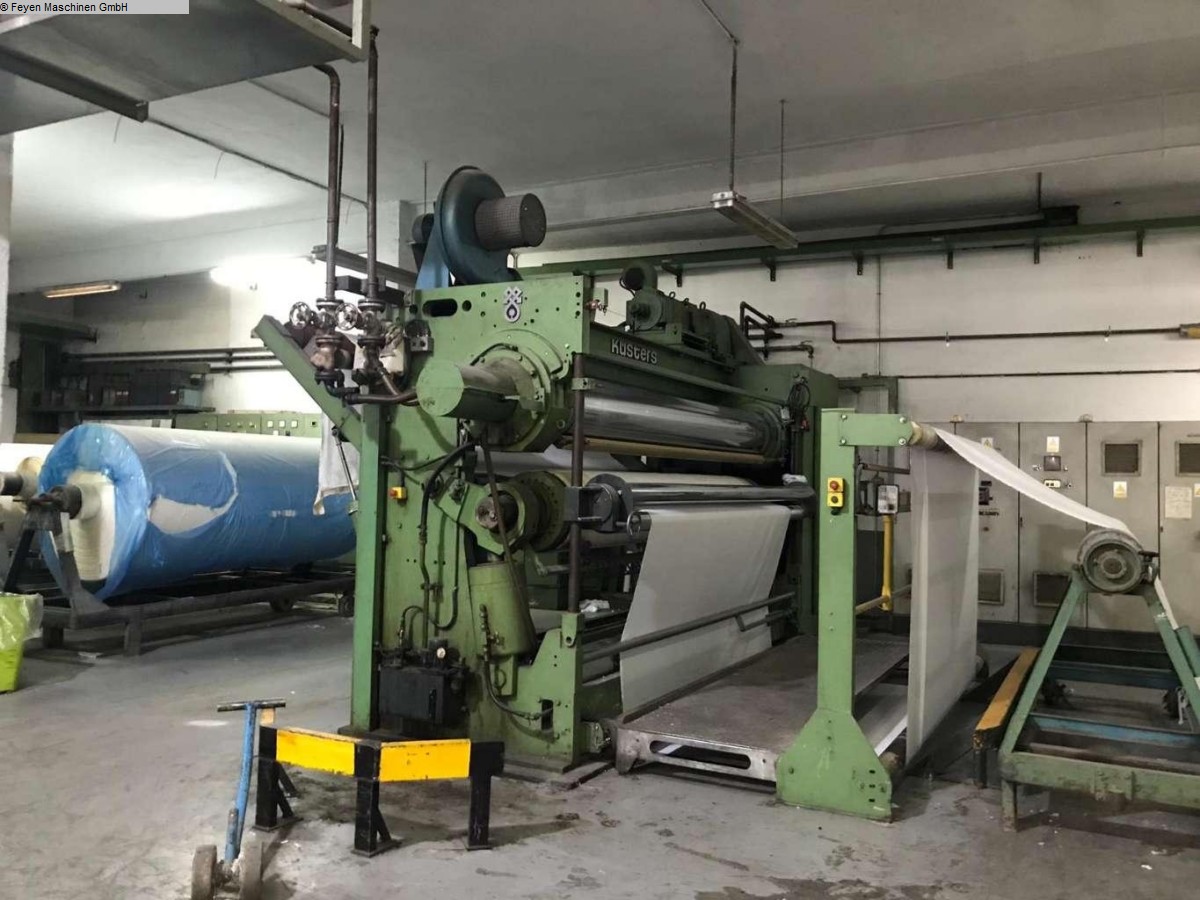

•2-Bowl-Calender with heatable steel roll and S-Roll with Flexroll-sleeve;
•Electrical steam heating for steel roll;
•Inlet with metal detector;
•Outlet for big batches;
•2 cooling rolls at the outlet
