Datasheet
Machine details
Technical details
- Working width3200 mm
- Roller width3400 mm
- Number of rollers2 Stück
- Supporting roller - dia340 mm
- Roller covering - soft rubber75 Grad shore
- Swimming roll - dia290 mm
- Roller covering - soft rubber75 Grad shore
- Pressure line50 N / mm
- Pressure total16 to
- Cloth guiding system for woven fabricscurved spreader,guid. rol
- Drive sideafter order
- Operting sideafter order
- Drive shaftdia 80 mm
- required powerbei 80 m/min = 11 kW
- Hydraulic unit for separately pressurein inox
- liquor trough withunder-liquor squeezing4 Rolls
kein Zusatz angegeben
kein Zubehör angegeben
Description
completely new machine,

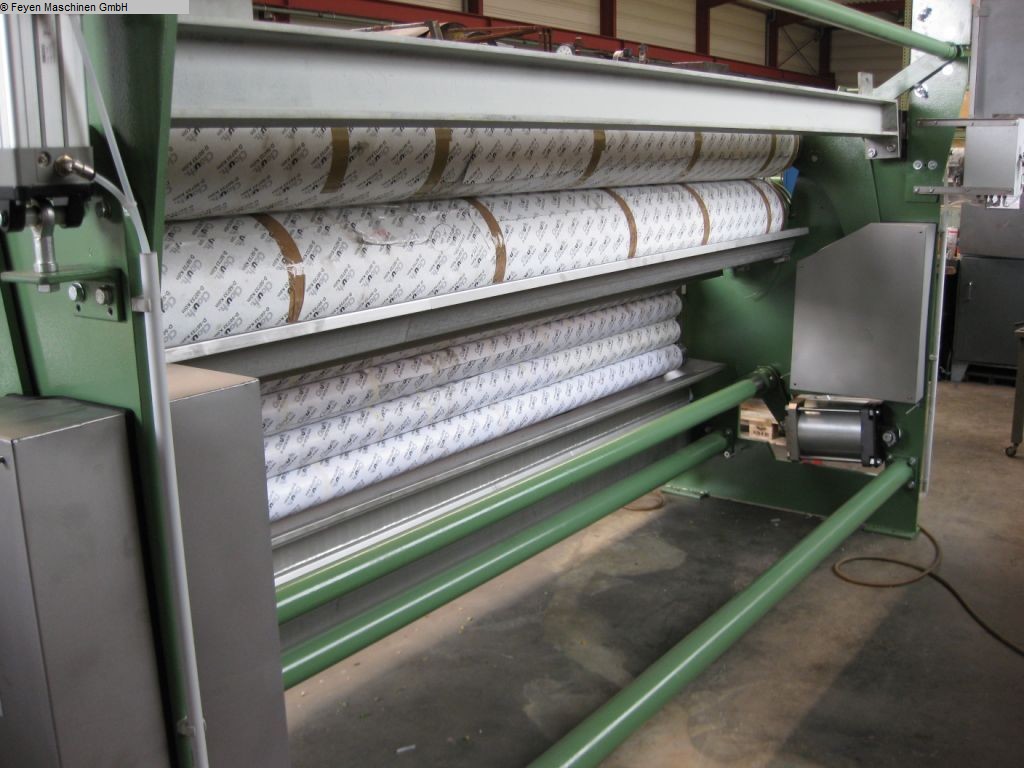

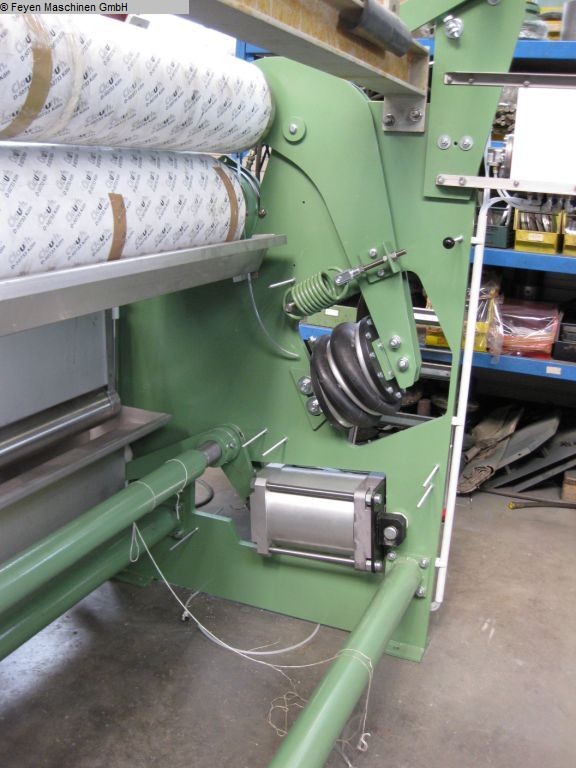

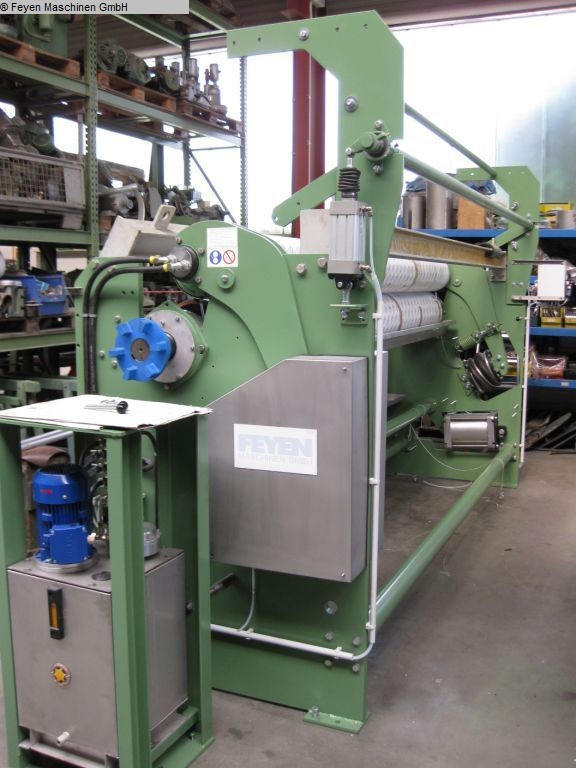

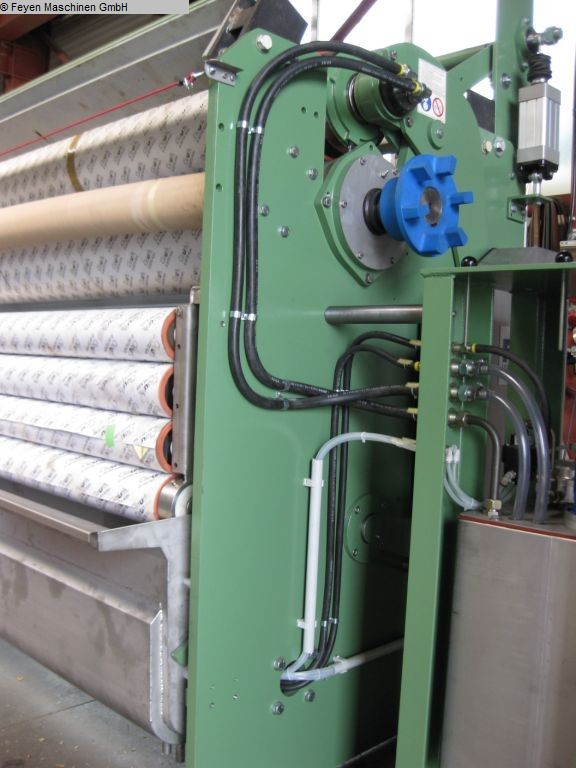

(Photo shows a similar machine after overhauling in delivery-status),
a new drive as single machine or for following operation can be additionally adapted,
