Datasheet
Machine details
Technical details
- Working widths3200 mm
- Roller width3400 mm
- Number of rollers2 x s-rolls Stück

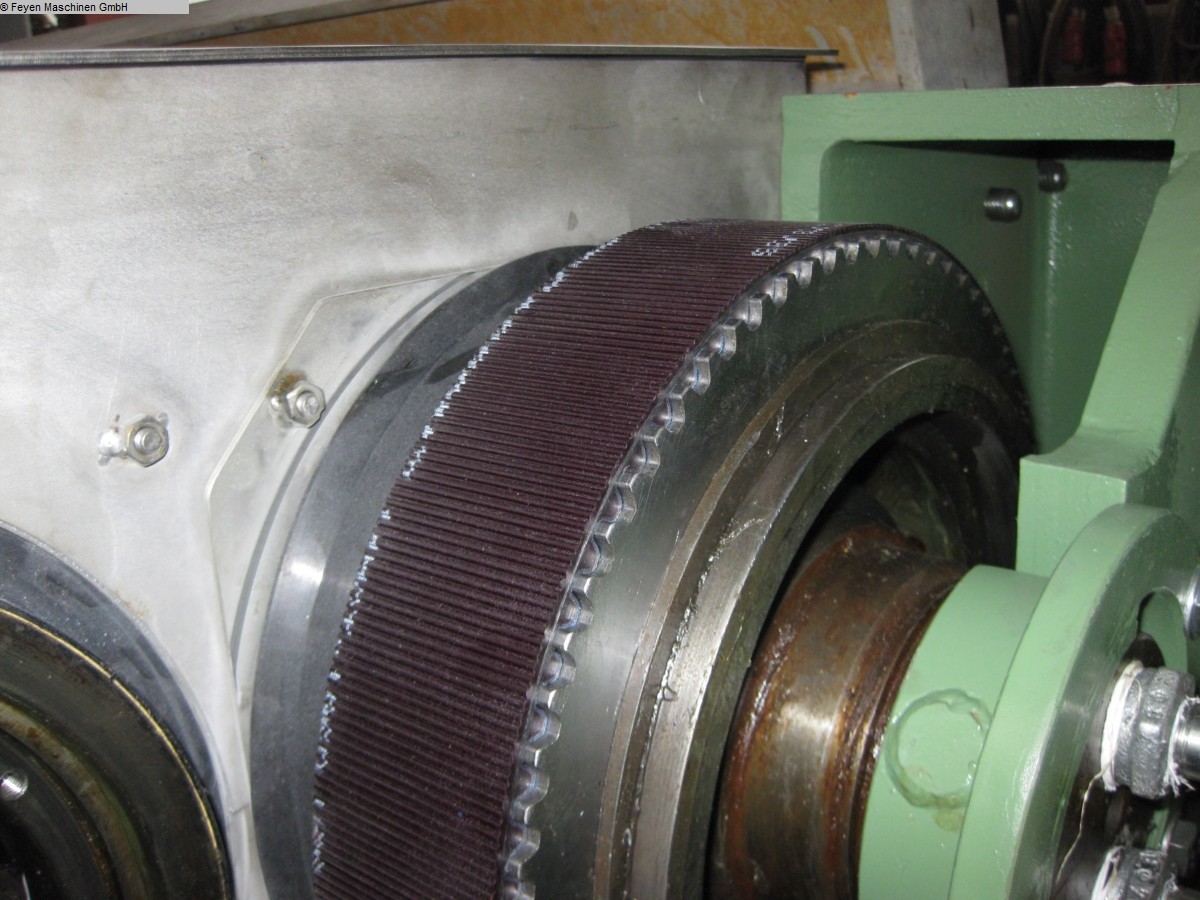

- Swimming roll - dia300 mm
- Roller covering - soft rubber75 Grad shore
- Pressure line50 N / mm
- Pressure total18 to
- liquor trough withunder-liquor squeezing4 Rolls
- Capacity of dye tubca. 80 Liter
- Cloth guiding system for woven goodscur. spreader i.f. of gap
- Drive shaftwithout gear
kein Zusatz angegeben
kein Zubehör angegeben
Description

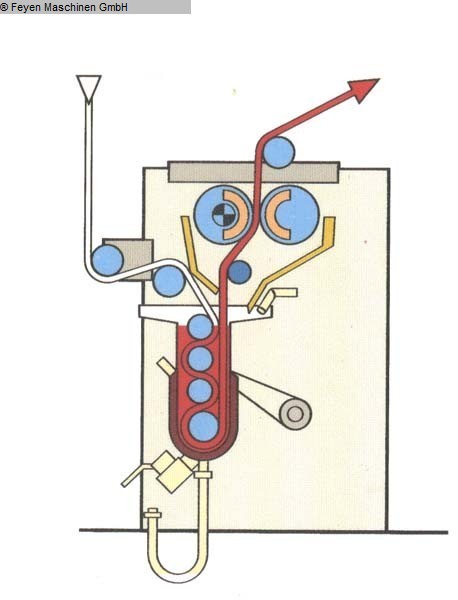

Dyeing padder with two "Swimming Rolls", horizontally arranged,
with liquor trough with 4-rolls under liquor squeezer,
Machine will be completly new. We supply with guarantee.

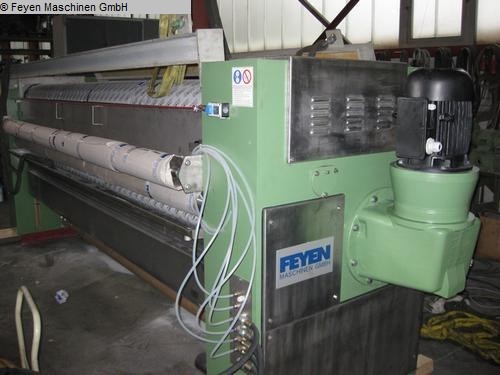

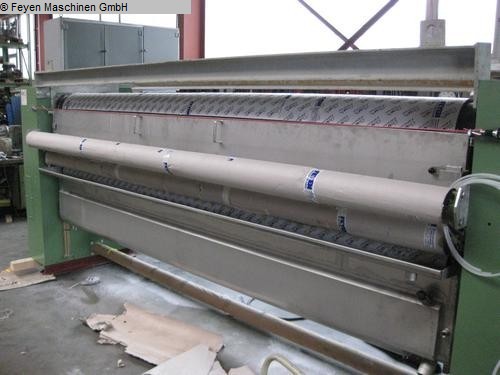

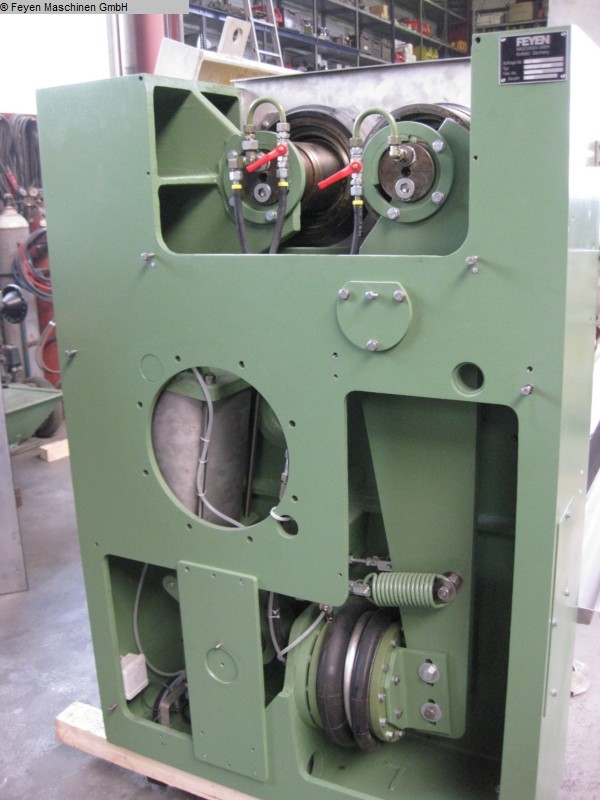

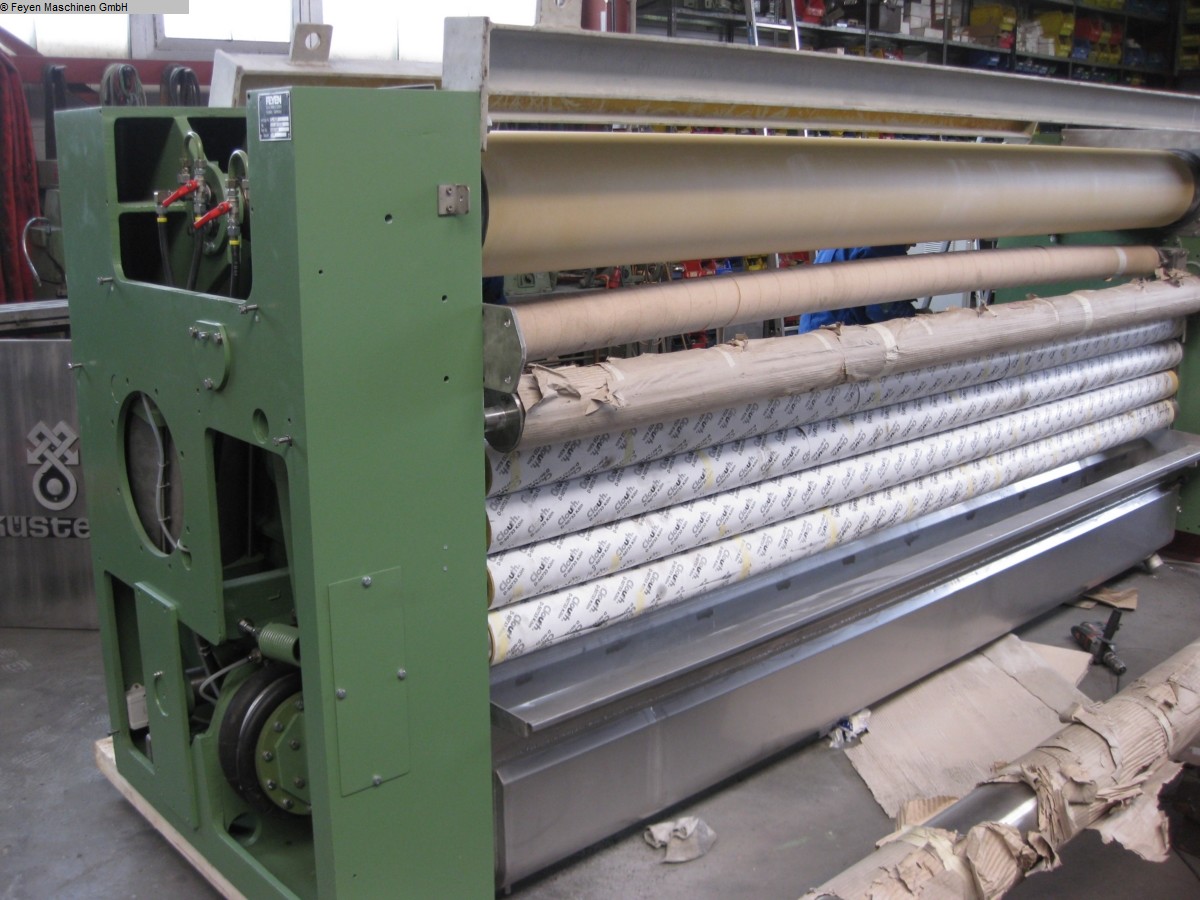

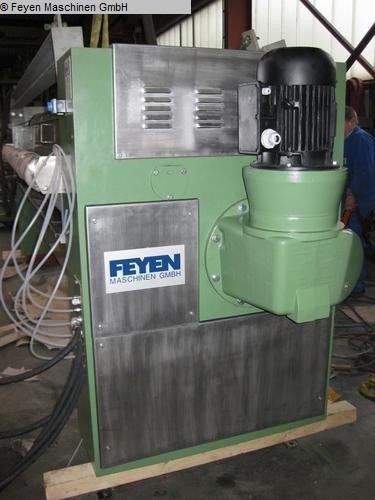

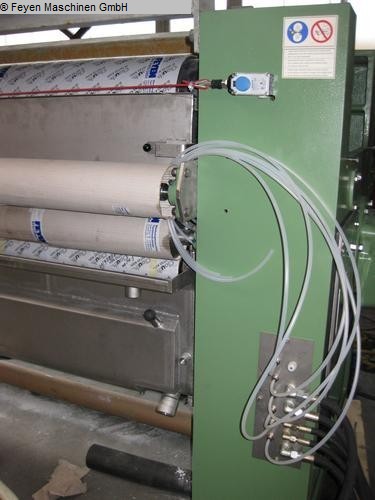

(Photo shows a similar machine before delivery)
New drive can be designed according to case of operation, extra charges: EUR
10000 - 12000
Guarantee period:12 months,
