• Working widths5600 mm
• Roller width5800 mm
• Number of rollers2 Stück
• Supporting roller - dia490 mm
• Roller covering - soft rubber75 Grad shore
• Swimming roll - dia340 mm
• Roller covering - soft rubber75 Grad shore
• Pressure line28 N / mm
• Pressure total16,5 to
• Liquor trough with guide rollheb + senkbar
• Cloth guiding systemBreithalter,1 Leitwalze
• Drive sidenach Auftrag
• Operting sidenach Auftrag
• Compensatorpneum. Entlastung
• Drive shaftDurchmesser 70 mm
• required power30 m/min =13 kW
• Hydraulic unit for combined pressureaus Edelstahl

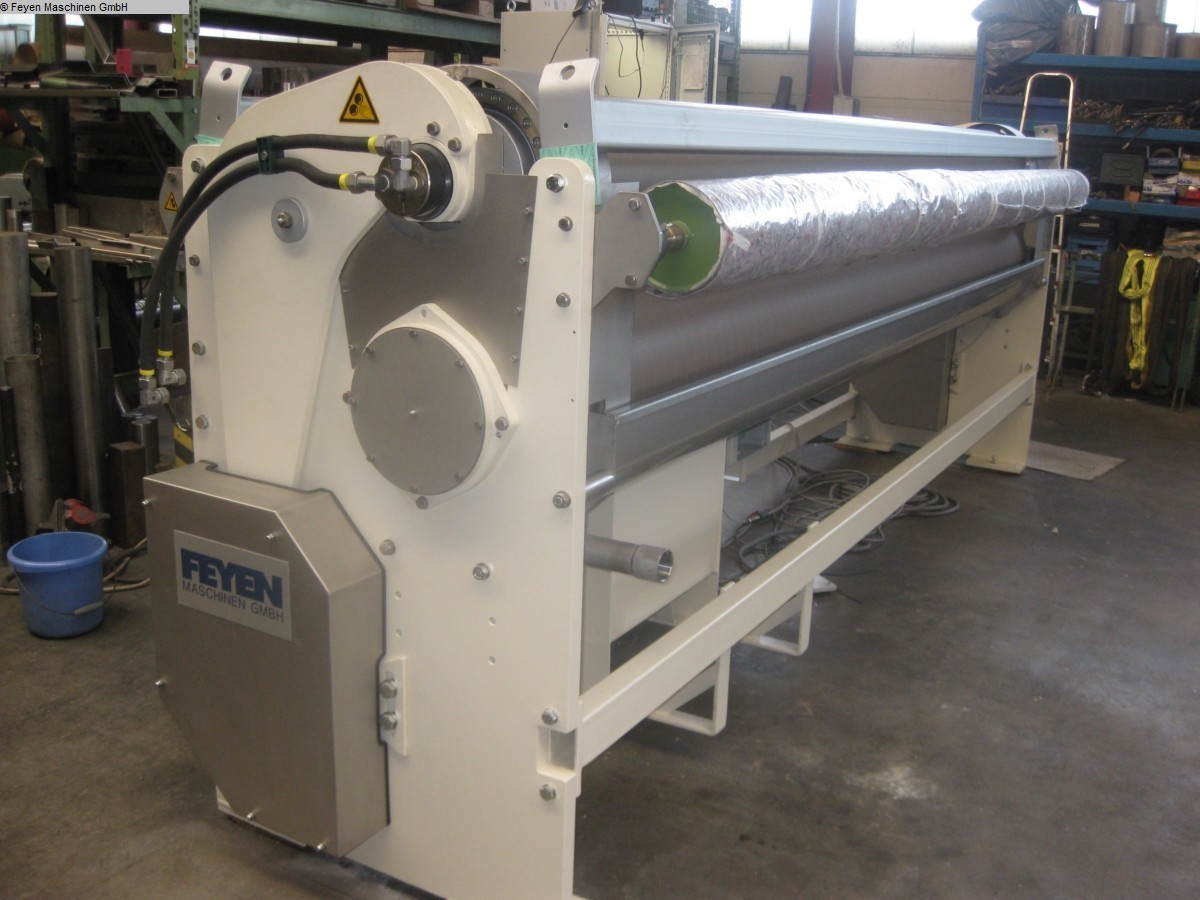

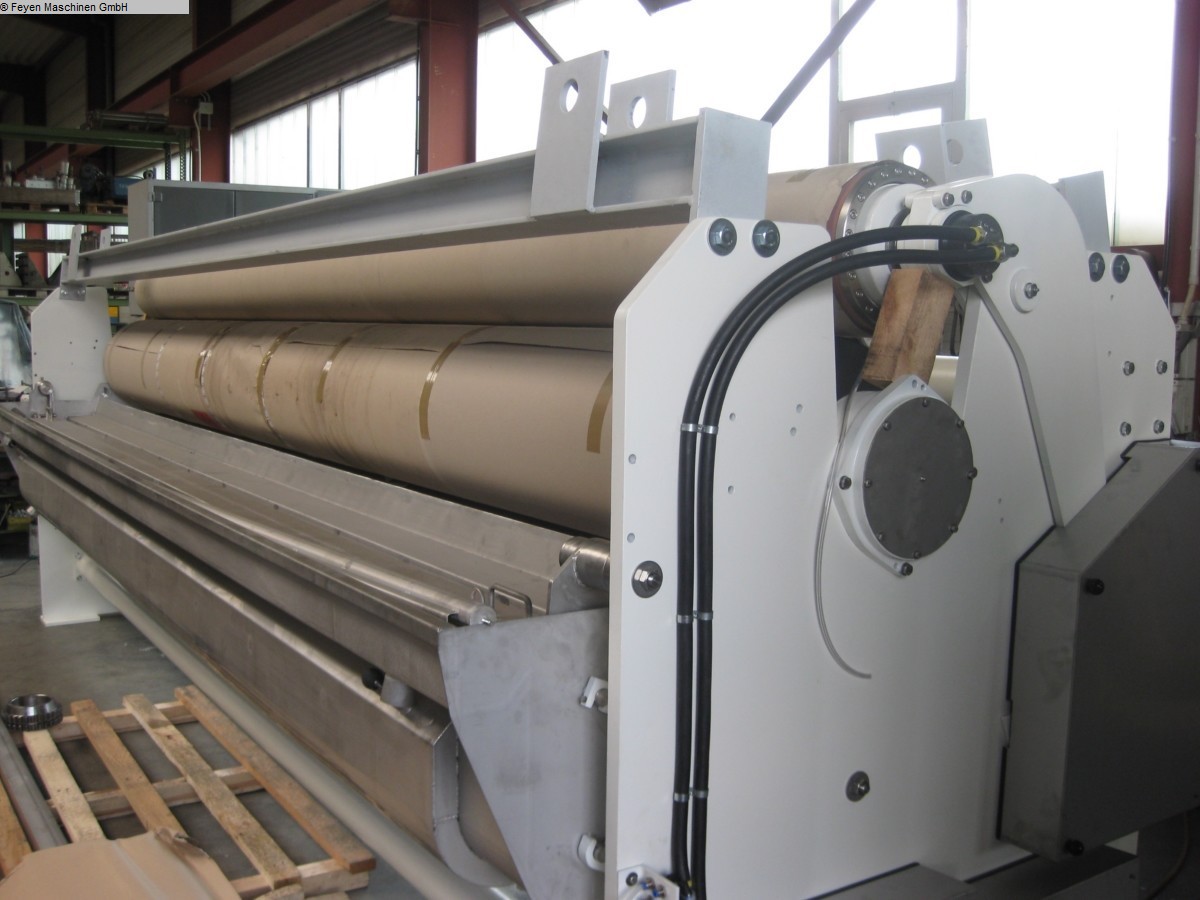

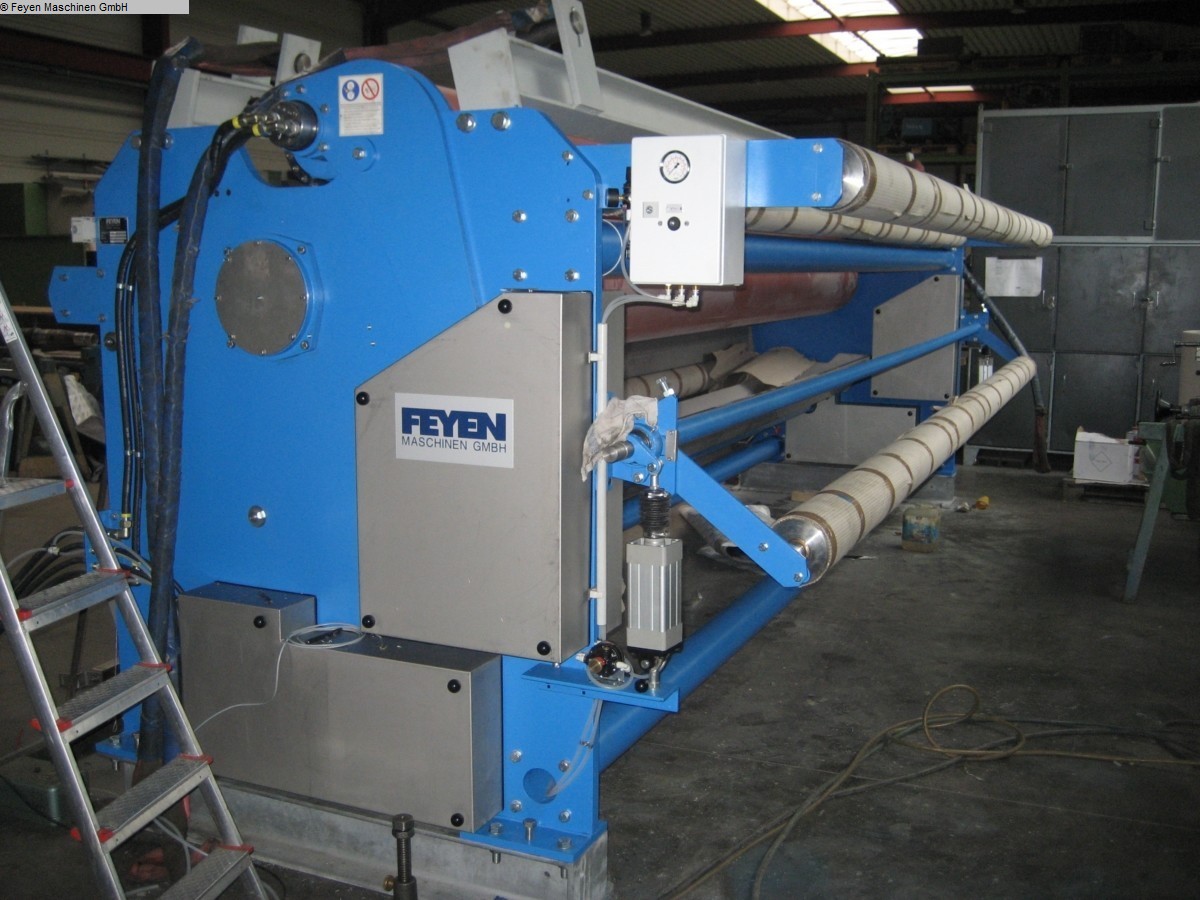

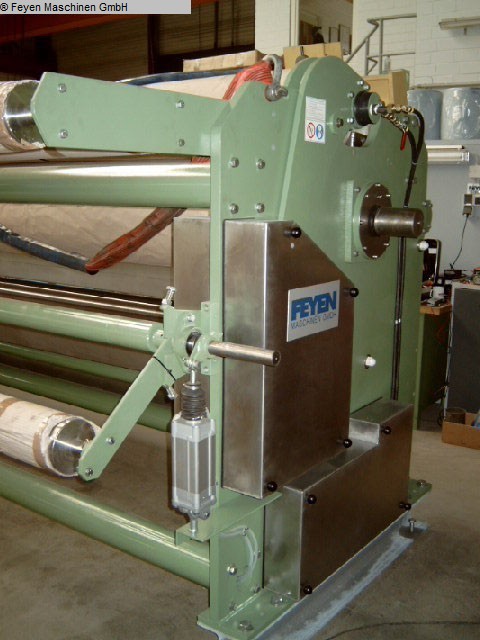

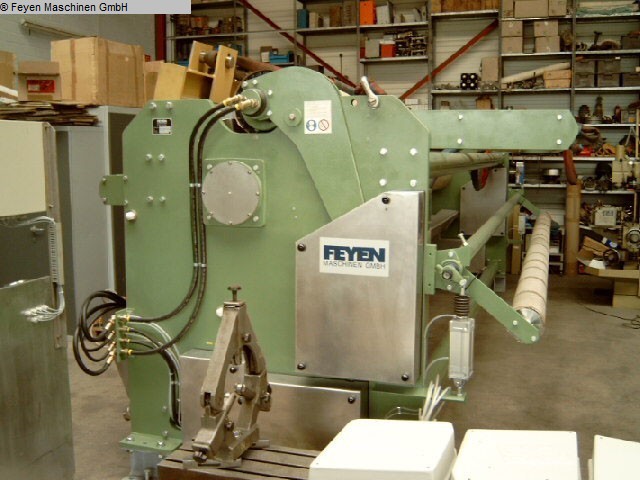

new 2-Bowl-Paddrer with Swimming roller, System KÜSTERS,
(Photo shows an overhauled machine in delivery-status),
• additionalnew frequency drive for adaptation into a plant is possible,
(extra-price)
