Datasheet
Machine details
Technical details
- Working width3200 mm
- Roller width3400 mm
- Number of rollers2 Stück
- Supporting roller - dia340 mm
- Roller covering - soft rubber75 Grad shore
- Swimming roll - dia270 mm
- Roller covering - soft rubber75 Grad shore
- Pressure line50 N / mm
- Pressure total18 to
- Clouth guiding system for knitted fabrics2 Profilbreithalter -Antr
- Liquor trough with guide roll+ Verdrängerkörper
- Operting sidenach Auftrag
- Drive sidenach Auftrag
- Drive shaftdia 80 mm
- Hydraulic unit for separately pressureaus Edelstahl
kein Zusatz angegeben
kein Zubehör angegeben
Description
Machine will be completely overhauled before delivery, we supply with
warranty.

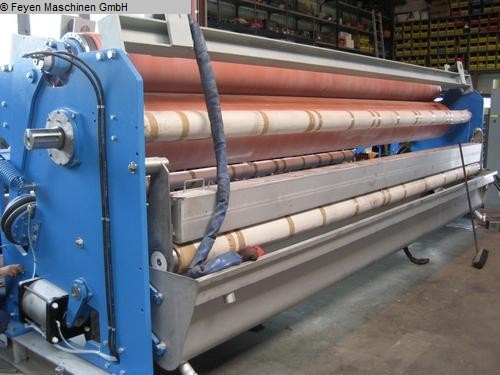

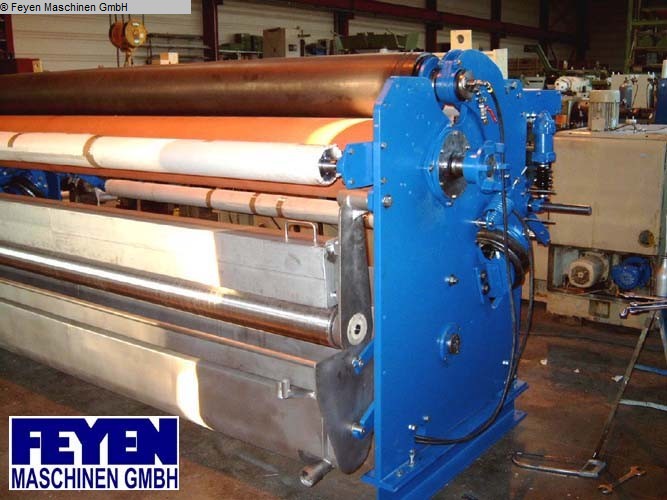

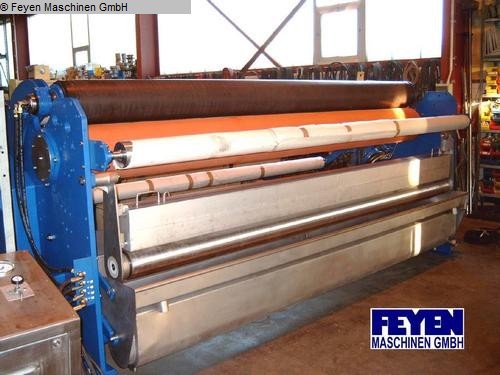

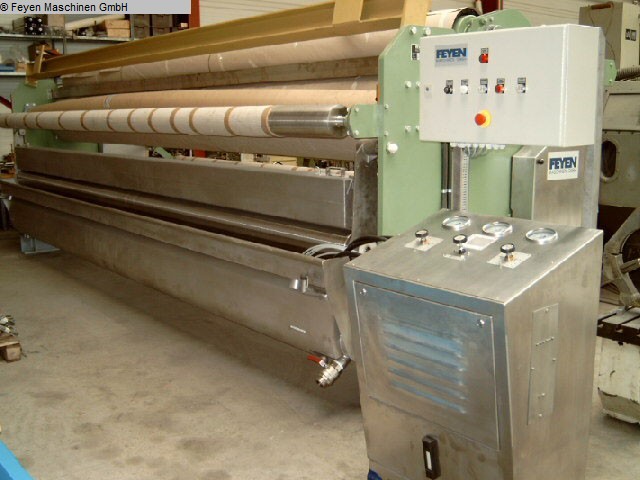

(Photos are showing similar machines after overhauling in delivery-status),
We are able to provide a drive in accordance with existing plant, if required
