Datasheet
Machine details
Technical details
- Working widths3400 mm
- Roller width3600 mm
- Number of rollers2 x S-Walze Stück
- Swimming roll - dia300 mm
- Roller covering - soft rubber75 Grad shore
- Pressure line50 N / mm
- Pressure total18 to
- liquor trough withunder-liquor squeezing4 Walzen
- Capacity of dye tubca. 75 Liter
- Cloth guiding system for woven goodsgeb. Breithalter vor Fuge
- Drive shaftohne Antrieb
kein Zusatz angegeben
kein Zubehör angegeben
Description

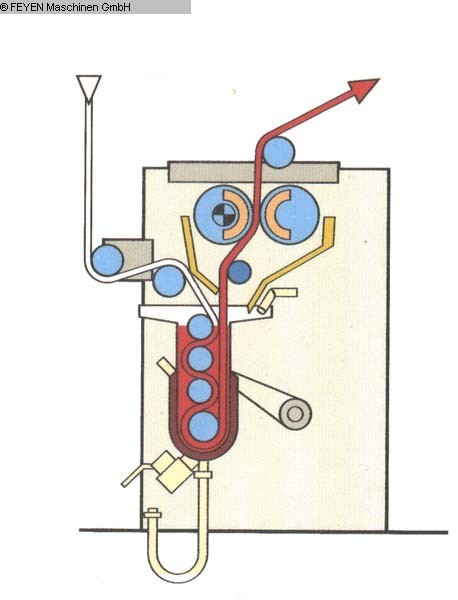

Dyeing padder with two "Swimming Rolls", horizontally arranged,
with liquor trough with S-roll under liquor squeezer,
Machine will be completely overhauled before delivery. We supply with guarantee.

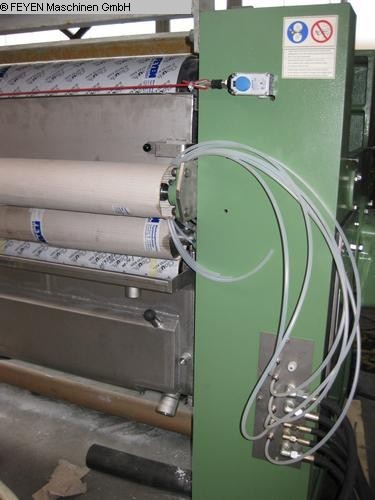

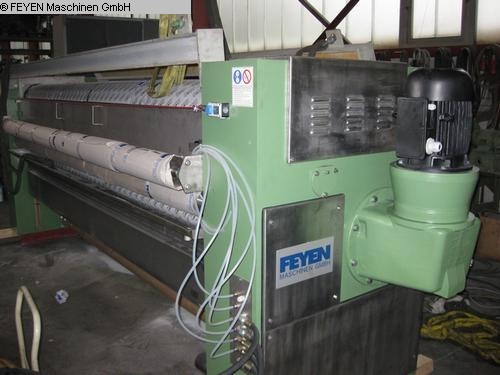

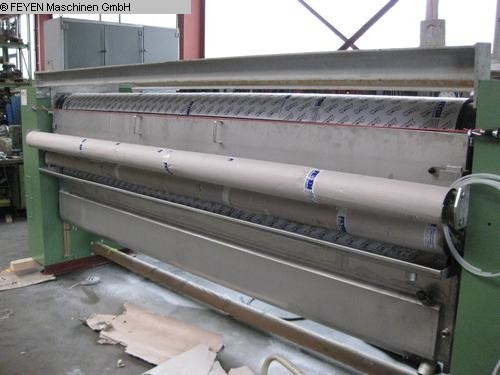

(Photo shows a similar machine after overhauling)

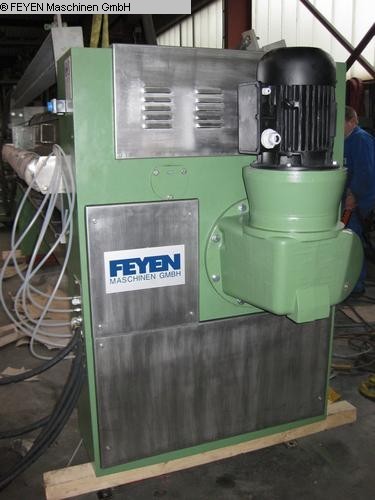

New drive can be designed according to case of operation, extra charges: EUR 10000 - 12000
Guarantee period:12 months,
