Datasheet
Machine details
Technical details
- Working width3200 mm
- Roller width3400 mm
- Number of rollers2 Stück
- Supporting roller - dia340 mm
- Roller covering - soft rubber75 Grad shore
- Swimming roll - dia270 mm
- Roller covering - ebonit100 Grad shore
- Pressure line50 N / mm
- Pressure total17 to
- Cloth guiding system for woven fabricsgebog.Breithalter vor Nip
- Liquor trough with displacer+Beckenleitwalze
- Cloth guiding system for woven fabrics2 Leitwalzen aus VA
- Drive sidenach Auftrag
- Operting sidenach Auftrag.
- Drive shaftdia 80 mm
- required powerbei 100 m/min = 12,5 kW

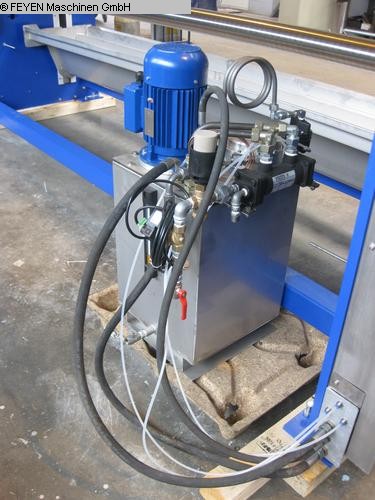

- Hydraulic unit for combined pressureaus Edelstahl
kein Zusatz angegeben
kein Zubehör angegeben
Description
Machine is completely new. We supply with warranty.

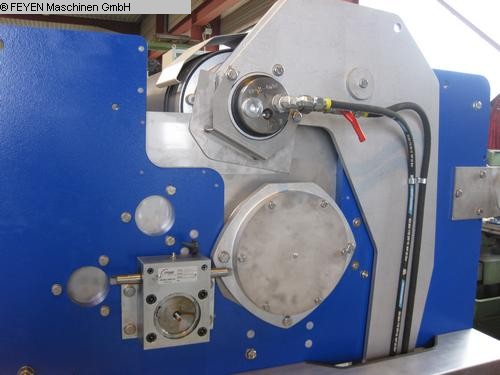

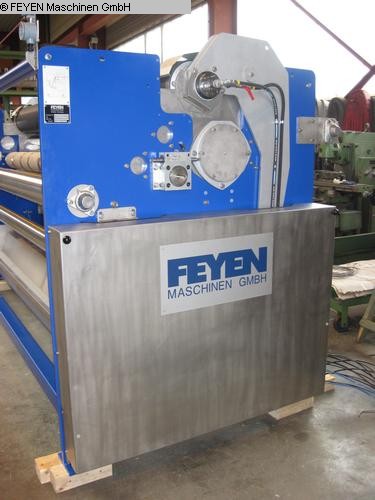

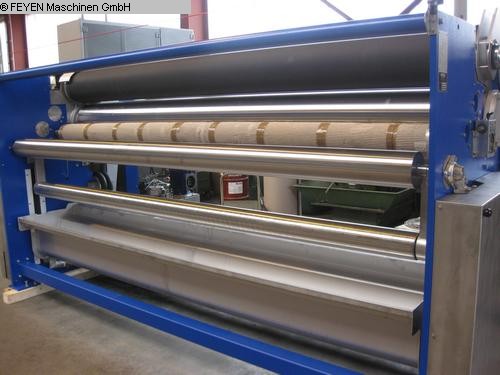

(On the photos there is a similar machine in delivery-status).
A new drive as single machine or for following operations can be also
delivered, extra costs).
