Datasheet
Machine details
Technical details
- Working widths4200 mm
- Roller width4400 mm
- Number of rollers2 Stück
- Supporting roller - dia490 mm
- Roller covering - soft rubber75 Grad shore
- Swimming roll - dia340 mm
- Roller covering - soft rubber75 Grad shore
- Pressure line50 N / mm
- Pressure total22 to
- Liquor trough with guide rollheb + senkbar
- Cloth guiding systemBreithalter,1 Leitwalze
- Drive sidenach Auftrag
- Operting sidenach Auftrag
- Compensatorpneum. Entlastung
- Drive shaftDurchmesser 70 mm
- required power30 m/min =10 kW
- Hydraulic unit for combined pressureaus Edelstahl
kein Zusatz angegeben
kein Zubehör angegeben
Description
Machine will be completely overhauled before delivery. We supply with
warranty.

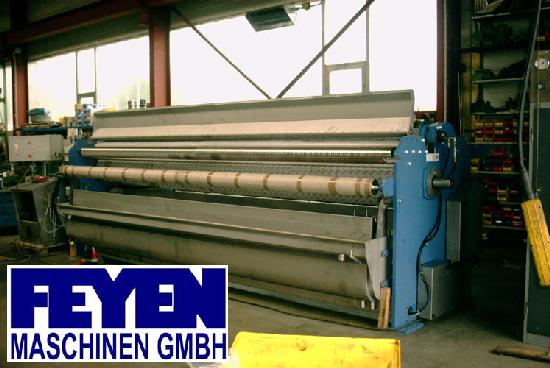

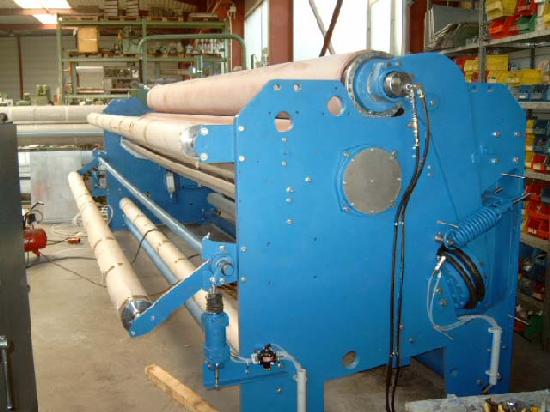

(Photo shows an overhauled machine in delivery-status),
add. new frequency drive for adaptation into a plant is possible
