Datasheet
Machine details
Technical details
- Working widths2000 mm
- Roller width2200 mm
- Number of rollers2
- Supporting roller - dia270 mm
- Roller covering - soft rubber75 Grad shore
- Swimming roll - dia210 mm
- Roller covering - soft rubber75 Grad shore
- Pressure line50 N / mm
- Pressure total12 to
- Cloth guiding systemBreithalter,1 Leitwalze
- Drive siderechts
- Operting sidelinks
- Liquor troughfür 1 x tauchen
- Compensatormit pneum. Entlastung
- Drive shaftDurchmesser 70 mm
- Hydraulic unit for combined pressureaus Edelstahl
kein Zusatz angegeben
kein Zubehör angegeben
Description
Cloth guiding for woven fabrics, fixed trough (1 x dipping).
Machine will be completely overhauled before delivery, we supply with warranty.

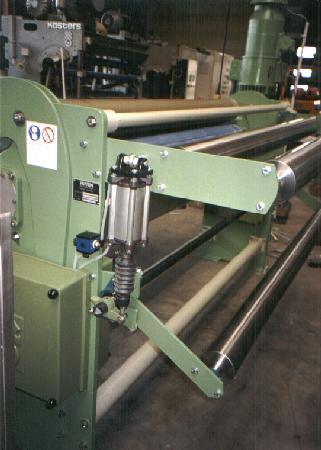

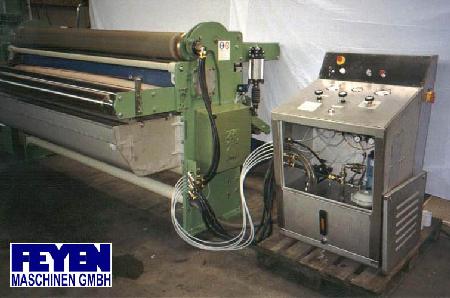

(Photo shows an overhauled machine in delivery-status)
Supply of drive for adaptation into a plant is possible, if requested
Documents & Videos
No video for this machine at the moment
