Datasheet
Machine details
Technical details
- saw-blade dia.370 mm
- cutting capacity - round115/ 90° mm
- cutting capacity - square110 x 110 /90° mm
- cutting capacity - flat110 x 110 / 90° mm
- cutting capacity - flat100 x 100 / 45° mm
- cutting capacity - round115 / 45° mm
- cutting capacity - square100 x 100 /45° mm
- saw blade turning speeds22 / 44 U/min
- voltage400 V / 50 Hz
- Motor output3 kW
- machine weight ab.270 kg
- Dimensions (L/W/H)980 x 790 x 780 mm
kein Zusatz angegeben
kein Zubehör angegeben

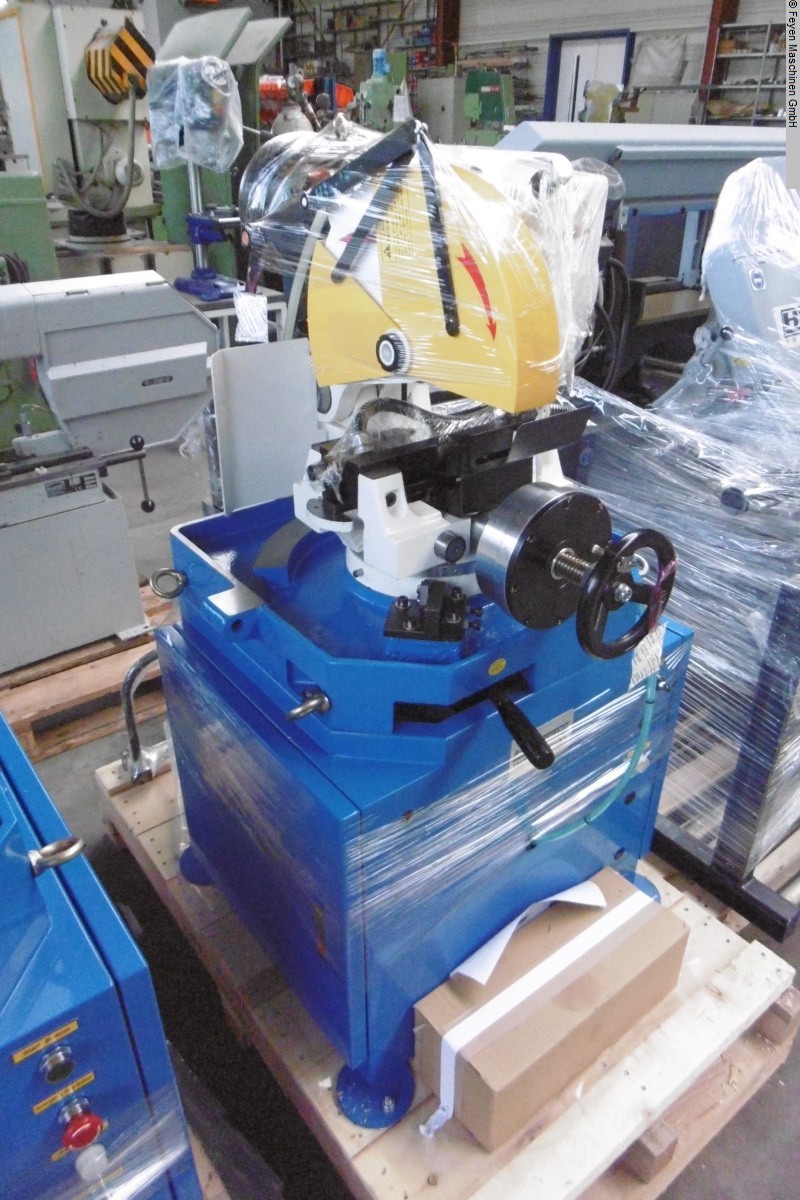

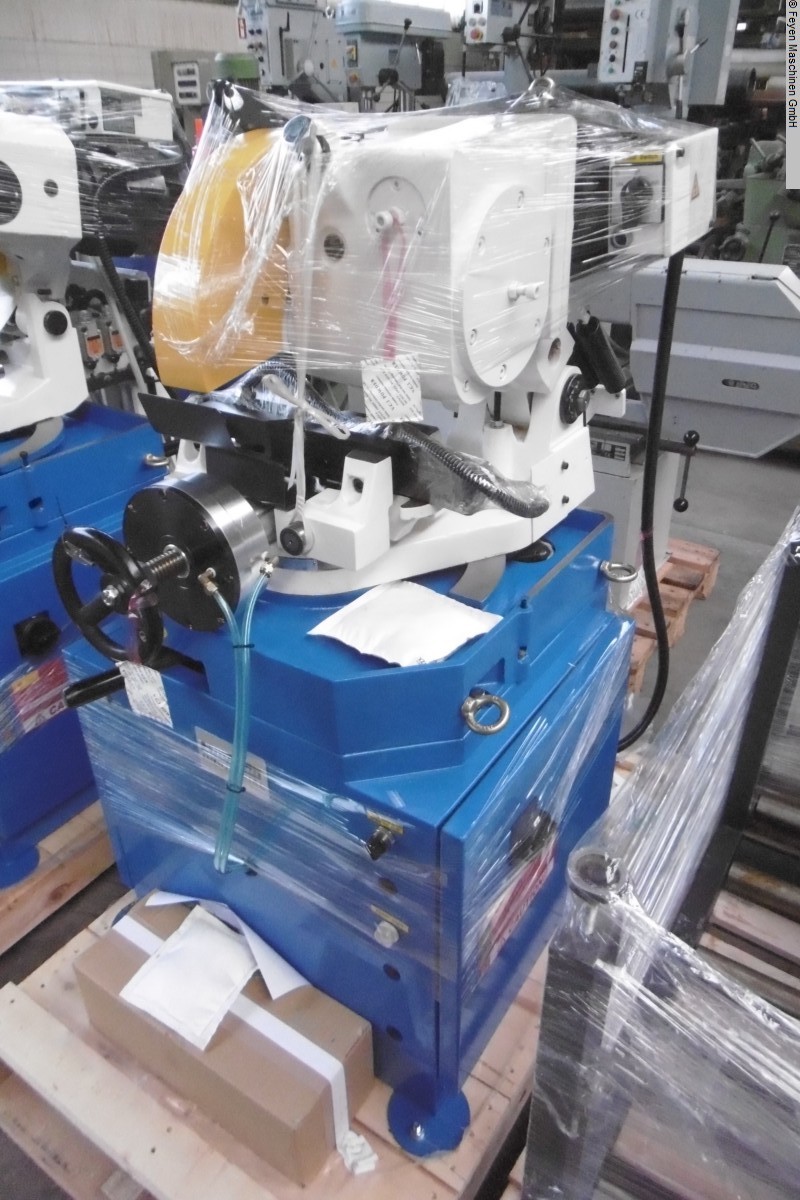

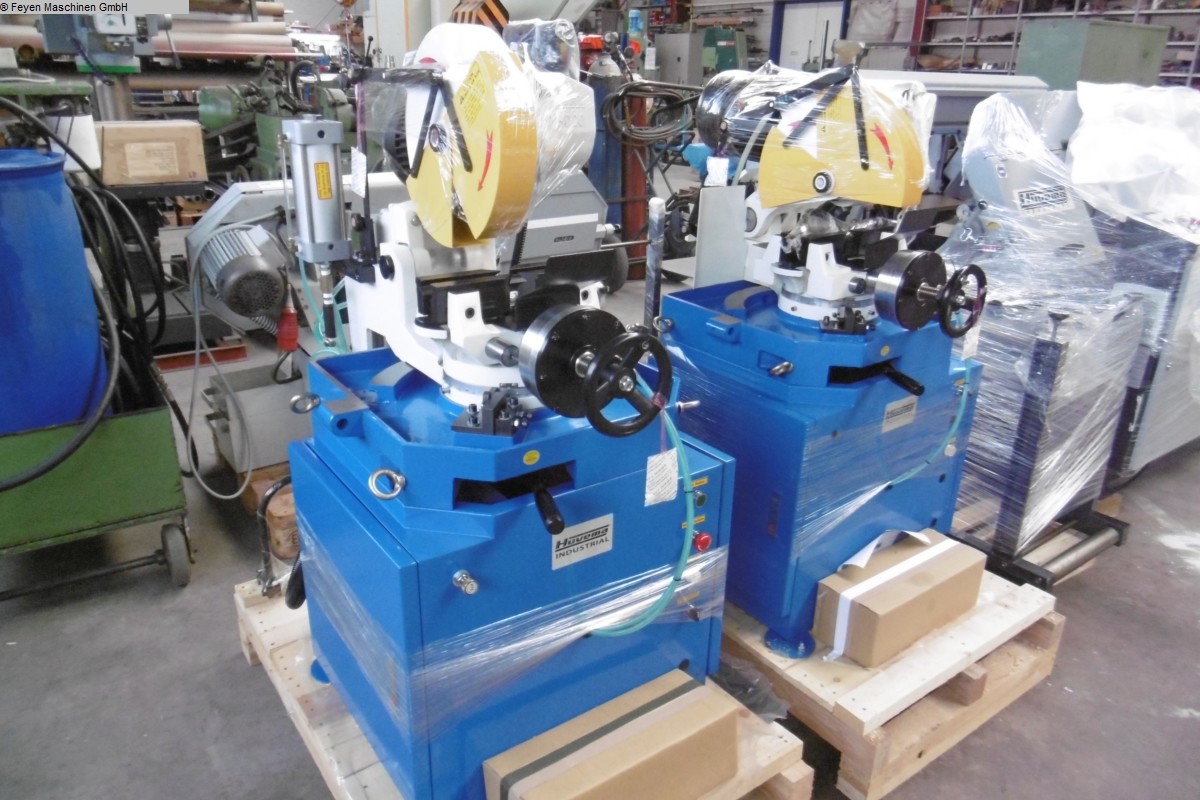

Description
saw is fitted on a lower frame,
2-step motor,
pneumatical quick clamping vise,
material back stop,
coolant device,
mitre ability: 40° left, 45° right
